产品概述
描述
The ST1S10 is a high efficiency step-down PWM current mode switching regulator capable of providing up to 3 A of output current. The device operates with an input supply range from 2.5 V to 18 V and provides an adjustable output voltage from 0.8 V (VFB) to 0.85 * VIN_SW[VOUT= VFB * (1 + R1/R2)]. It operates either at a 900 kHz fixed frequency or can be synchronized to an external clock (from 400 kHz to 1.2 MHz). The high switching frequency allows the use of tiny SMD external components, while the integrated synchronous rectifier eliminates the need for a Schottky diode. The ST1S10 provides excellent transient response, and is fully protected against thermal overheating, switching overcurrent and output short-circuit.
The ST1S10 is the ideal choice for point of load regulators or LDO pre-regulation.
-
所有功能
- Step-down current mode PWM regulator
- Output voltage adjustable from 0.8 V
- Input voltage from 2.5 V up to 18 V
- 2% DC output voltage tolerance
- Synchronous rectification
- Inhibit function
- Synchronizable switching frequency from 400 kHz up to 1.2 MHz
- Internal soft start
- Dynamic short-circuit protection
- Typical efficiency: 90%
- 3 A output current capability
- Standby supply current: max. 6 μA over temperature range
- Operative junction temp.: from -40 °C to 125 °C

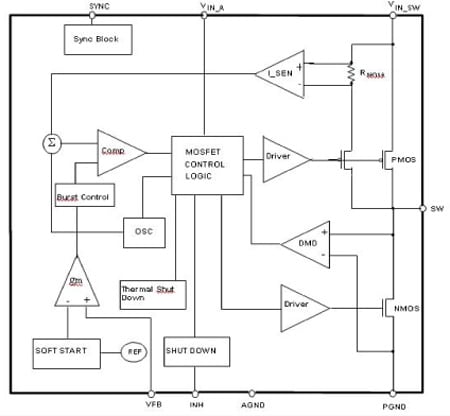

电路原理图
eDesignSuite
eDesignSuite 是一套全面且易于使用的设计辅助工具，旨在帮助您简化系统开发过程，并支持广泛的ST产品。
电源管理设计中心
组件的热电模拟器
信号调节设计工具
NFC/RFID计算器
电源设计工具
LED照明设计工具
数字电源工作台
电源树设计器
AC开关模拟器
整流二极管模拟器
STPOWER Studio
Twister Sim
TVS模拟器
Estimate
PCB热模拟器
有源滤波器
比较器
低侧电流检测
高侧电流检测
NFC电感
UHF链路预算
NFC调谐电路
您可能还会喜欢...
EDA符号、封装和3D模型
意法半导体 - ST1S10
Speed up your design by downloading all the EDA symbols, footprints and 3D models for your application. You have access to a large number of CAD formats to fit with your design toolchain.
Please select one model supplier :
符号
封装
3D模型
质量与可靠性
| 产品型号 | Marketing Status | 包 | 等级规格 | 符合RoHS级别 | Longevity Commitment | Longevity Starting Date | 材料声明** |
|---|---|---|---|---|---|---|---|
| ST1S10PHR | NRND | PowerSO-8 | 工业 | Ecopack2 | - | - | |
| ST1S10PUR | NRND | DFN8 4x4 | 工业 | Ecopack2 | - | - |
(**) st.com上提供的材料声明表单可能是基于包装系列中最常用的封装的通用文档。因此，它们可能不是100%适用于特定的设备。有关特定设备的信息，请联系 销售支持。
样片和购买
| 产品型号 | 供货状态 | Budgetary Price (US$)*/Qty | 从ST订购 | Order from distributors | 包 | 包装类型 | RoHS | Country of Origin | ECCN (US) | ECCN (EU) | Operating temperature (°C) | Operating Temperature (°C) (max) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 最小值 | 最大值 | |||||||||||||
| ST1S10PHR | | | distributors 无法联系到经销商，请联系我们的销售办事处 | |||||||||||
| ST1S10PUR | | | distributors 无法联系到经销商，请联系我们的销售办事处 | |||||||||||
ST1S10PHR NRND
ST1S10PUR NRND
