产品概述

描述

The L5973AD is a step down monolithic power switching regulator with a switch current limit of 2A so it is able to deliver more than 1.5 A DC current to the load depending on the application conditions.

The output voltage can be set from 1.235 V to 35 V. The high current level is also achieved thanks to an SO8 package with exposed frame, that allows to reduce the R_thJA down to approximately 40 °C/W.

The device uses an internal P-Channel D-MOS transistor (with a typical of 200 mΩ) as switching element to avoid the use of bootstrap capacitor and guarantee high efficiency.

An internal oscillator fixes the switching frequency at 500 kHz to minimize the size of external components.

Having a minimum input voltage of 4 V only, it is particularly suitable for 5 V bus, available in all computer related applications.

Pulse by pulse current limit with the internal frequency modulation offers an effective constant current short circuit protection.

所有功能
Inhibit for zero current consumption

Internal current limiting

Protection against feedback disconnection

Synchronization

Thermal shutdown

Voltage feedforward

500 kHz Internally fixed frequency
2 A Internal switch

3.3 V / (±2 %) reference voltage

Operating input voltage from 4 V to 36 V

Low dropout operation: 100 % duty cycle

Zero load current operation

Output voltage adjustable from 1.235 V to 35 V
阅读更多阅读较少信息

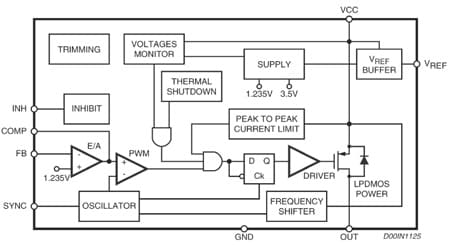

电路原理图
