产品概述
描述
The L4978 is a step down monolithic power switching regulator delivering 2A at a voltage between 3.3V and 50V (selected by a simple external divider). Realized in BCD mixed technology, the device uses an internal power D-MOS transistor (with a typical Rdson of 0.25Ω) to obtain very high efficency and high switching speed.
A switching frequency up to 300KHz is achievable (the maximum power dissipation of the packages must be observed). A wide input voltage range between 8V to 55V and output voltages regulated from 3.3V to 50V cover the majority of today’s applications. Features of this new generations of DC-DC converter include pulse-by-pulse current limit, hiccup mode for short circuit protection, voltage feedforward regulation, soft-start, protection against feedback loop disconnection, inhibit for zero current consumption and thermal shutdown.
The device is available in plastic dual in line, DIP-8 for standard assembly, and SO16W for SMD assembly.
-
所有功能
- PROTECTION AGAINST FEEDBACK DISCONNECTION
- INHIBIT FOR ZERO CURRENT CONSUMPTION
- SOFT START FUNCTION
- THERMAL SHUTDOWN
- ZERO LOAD CURRENT OPERATION
- VOLTAGE FEEDFORWARD
- UP TO 2A STEP DOWN CONVERTER
- PRECISE 3.3V (±1%) INTERNAL REFERENCE VOLTAGE
- OPERATING INPUT VOLTAGE FROM 8V TO 55V
- SWITCHING FREQUENCY ADJUSTABLE UP TO 300KHz
- INTERNAL CURRENT LIMITING (PULSE-BYPULSE AND HICCUP MODE)
- OUTPUT VOLTAGE ADJUSTABLE FROM 3.3V TO 50V

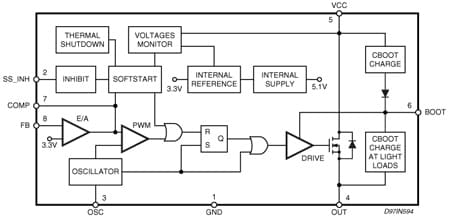

电路原理图
特别推荐
EDA符号、封装和3D模型
STMicroelectronics - L4978
Speed up your design by downloading all the EDA symbols, footprints and 3D models for your application. You have access to a large number of CAD formats to fit with your design toolchain.
Please select one model supplier :
符号
封装
3D模型
质量与可靠性
| 产品型号 | Marketing Status | 包 | 等级规格 | 符合RoHS级别 | 材料声明** |
|---|---|---|---|---|---|
| L4978 | 批量生产 | DIP-8 | 工业 | Ecopack2 | |
| L4978D | 批量生产 | SO-16W | 工业 | Ecopack3 | |
| L4978D013TR | 批量生产 | SO-16W | 工业 | Ecopack1 |
(**) st.com上提供的材料声明表单可能是基于包装系列中最常用的封装的通用文档。因此，它们可能不是100%适用于特定的设备。有关特定设备的信息，请联系 销售支持。
样片和购买
| 产品型号 | 供货状态 | Budgetary Price (US$)*/Qty | 从ST订购 | Order from distributors | 包 | 包装类型 | RoHS | Country of Origin | ECCN (US) | ECCN (EU) | Operating temperature (°C) | Operating Temperature (°C) (max) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 最小值 | 最大值 | |||||||||||||
| L4978D013TR | | | distributors 无法联系到经销商，请联系我们的销售办事处 | |||||||||||
| L4978 | | | distributors 无法联系到经销商，请联系我们的销售办事处 | |||||||||||
| L4978D | | | distributors 无法联系到经销商，请联系我们的销售办事处 | |||||||||||
L4978D013TR 批量生产
L4978 批量生产
L4978D 批量生产
