产品概述
主要优势
Mainlined OpenSTLinux Distribution
One OpenSTLinux Software compatible with STM32MPU Family. OpenSTLinux expansion packages can be applied on the top to enable the use of additional components.
支持DDR3L带来市场优势
除了支持DDR4/LPDDR4，STM32MP2系列还增加了对DDR3L存储器的支持，帮助您从容应对自2025年中出现的DDR4/LPDDR4短缺与价格飙升，确保产品定价的竞争力与供应链的安全。
描述

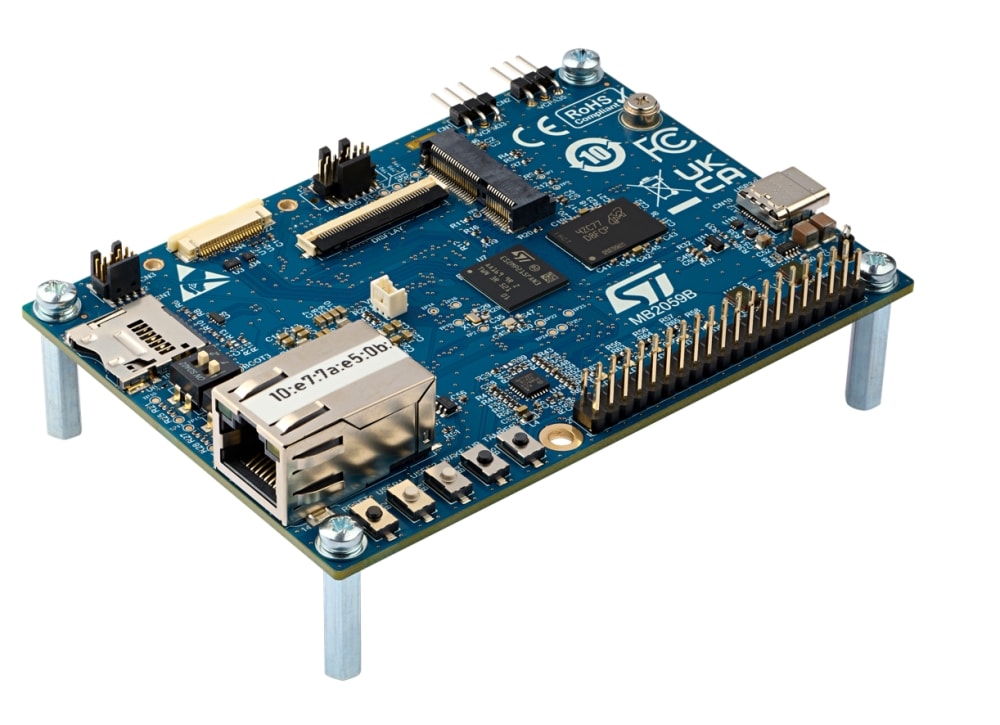

The STM32MP215F-DK Discovery kit is designed as a complete demonstration and development platform for the STMicroelectronics STM32MP215FAN3 microprocessor, based on the Arm® Cortex®‑A35 and Cortex®‑M33 processors.
The product leverages the capabilities of the STM32MP2 series microprocessors to allow the development of applications using STM32 MPU OpenSTLinux Distribution software for the main processor (Arm® Cortex®‑A35) and STM32CubeMP2 software for the coprocessor (Arm® Cortex®‑M33).
It includes LEDs, push-buttons, 100‑Mbit/s Ethernet, one USB 2.0 USB Type-C® Bus Powered, one MIPI10 and one STDC14 debug connector, an LCD LTDC display connector, one camera module connector, a microSD™ card holder, and an M.2 E‑Key connector to support Wi‑Fi® and Bluetooth® SDIO modules. To expand the functionality of the STM32MP215F-DK Discovery kit, a GPIO expansion connector is also available for Raspberry Pi® shields.
-
所有功能
- STM32MP215FAN3 microprocessor based on the Arm® Cortex®‑A35 up to 1.5 GHz and Cortex®‑M33 at 300 MHz in a VFBGA273 package
- STMicroelectronics power management STPMIC2L
- 16‑Gbit LPDDR4 DRAM
- 100‑Mbit/s Ethernet (RMII)
- USB 2.0 Bus Powered
- Four user LEDs
- Two user, one tamper, and one reset push-buttons
- Wake-up button
- Four boot pin switches
- Board connectors:
- Ethernet RJ45
- USB 2.0 USB Type-C®
- microSD™ card holder
- Dual-lane MIPI CSI-2® camera module expansion connector
- LTDC display connector
- M.2 E‑Key connector to support Wi‑Fi® and Bluetooth® SDIO modules
- GPIO expansion connector
- VBAT for power backup
- MIPI10 JTAG connector
- STDC14 connector for debug
- Mainlined open-source Linux® STM32 MPU OpenSTLinux Distribution and STM32CubeMP2 software with examples
- Linux® Yocto Project®, Buildroot, and STM32CubeIDE as development environments
