产品概述
描述
The STDES-8PIOLM4P is an 8-port IO-Link master design based on the IOLM4P.
The IOLM4P is an all-in-one IO-Link master 4-port solution and it has the protocol stack programmed by the ST partner TEConcept.
It enables a fast and easy 8-port IO-Link master prototype, with a competitive cost, which can greatly reduce the time to market for the customers multiport IO-Link master design.
The STDES-8PIOLM4P is a reference design board with a L6360TR as an IO-Link device transceiver.
The IOLM4P is STM32L431CB MCU with IO-Link master stack.
The STM32F746ZG is the main controller to play as gateway between USB/Ethernet and IO-Link.
The Ethernet IP function, is implemented through external Ethernet PHY KSZ8863, which has two PHY units and supports both 10BASE-T and 100BASE-TX.
The STDES-8PIOLM4P is a turnkey solution ready for industrialization.
The IOLM4P is based on a STM32F746ZG MCU preprogrammed by Arrow Electronics integrated TEConcept IO-Link master stack, easy to develop for the customer.
A dedicated SWD 5-pin connector can program the microcontroller STM32F746ZG.
This STDES-8PIOLM4P is an ST total solution with one-stop BOM purchasing.
-
所有功能

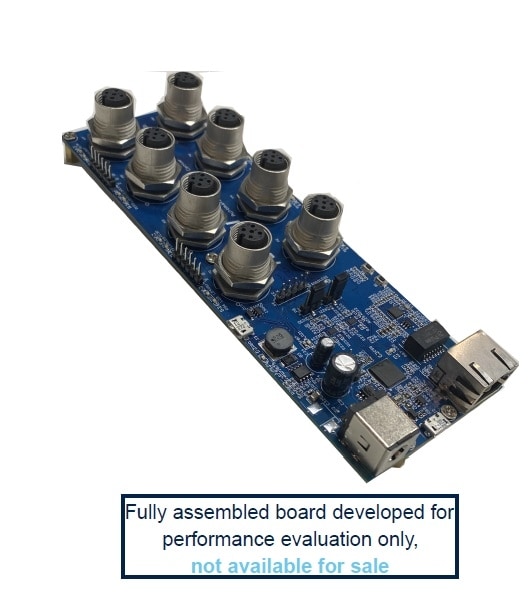

- 8-port IO-Link master STDES-8PIOLM4P (172 x 60 mm) main board, 24V power connector, 8 Port M12 connector and USB micro connector for communication
- Main controller is STM32F746ZG, Arm 32-bit Cortex®-M7 CPU with FPU, adaptive real-time accelerator (ART Accelerator) and L1-cache: 4KB data cache and 4KB instruction cache, allowing 0-wait state execution from embedded flash memory and external memories. Frequency up to 216 MHz, MPU, 462 DMIPS/2.14 DMIPS/MHz (Dhrystone 2.1), and DSP instructions
- Two IOLM4P-STM32L4 modules used and each is an IO-Link V1.1.2 compliant 4-port master controller stack
- USB micro connector for PC control tool communication
- Alternate UART port for STM32F7 module running code debug
- 8 L6360 IO-Link master transceiver ICs
- Easy to extend and integrate the IOLM4P into different application
- Fully compatible with all IO-Link devices
- On-board reverse polarity protection
- EEPROM interface for local data storage support
- SWD connector for debugging and programming capability
- Optional Ethernet RJ45 connector for specific application
- On board connector for IOLM4P master firmware updating
- RoHS compliant
特别推荐
所有资源
| 资源标题 | 版本 | 更新时间 |
|---|
MCSDK Board Description (1)
| 资源标题 | 版本 | 更新时间 | ||
|---|---|---|---|---|
| ZIP | 1.0 | 28 Mar 2023 | 28 Mar 2023 |
物料清单 (1)
| 资源标题 | 版本 | 更新时间 | ||
|---|---|---|---|---|
| 1.0 | 28 Mar 2023 | 28 Mar 2023 |
Schematic Pack (1)
| 资源标题 | 版本 | 更新时间 | ||
|---|---|---|---|---|
| 1.0 | 28 Mar 2023 | 28 Mar 2023 |
质量与可靠性
| 产品型号 | Marketing Status | 包 | 等级规格 | 符合RoHS级别 | WEEE Compliant | Longevity Commitment | Longevity Starting Date | 材料声明** |
|---|---|---|---|---|---|---|---|---|
| STDES-8PIOLM4P | 批量生产 | - | 工业 | - | Yes | - | - | |
STDES-8PIOLM4P
Package:
-Material Declaration**:
(**) st.com上提供的材料声明表单可能是基于包装系列中最常用的封装的通用文档。因此，它们可能不是100%适用于特定的设备。有关特定设备的信息，请联系 销售支持。
样片和购买
| 产品型号 | 供货状态 | Budgetary Price (US$)*/Qty | 从ST订购 | Order from distributors | 包 | 包装类型 | RoHS | Country of Origin | ECCN (US) | ECCN (EU) | 供应商 | 核心产品 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| STDES-8PIOLM4P | | | distributors 无法联系到经销商，请联系我们的销售办事处 |
|
|
STDES-8PIOLM4P 批量生产
