产品概要
描述
The EMIF02-1003M6 is a 2 line highly integrated device designed to suppress EMI/RFI noise in all systems exposed to electromagnetic interference.
This filter includes ESD protection circuitry, which prevents damage to the application when subjected to ESD surges up to 15 kV on all pins.
-
性能一览
- Low capacitance
- Easy layout and flexibility due to single line topology
- High reduction of parasitic elements through integration and wafer level packaging.
- High reliability offered by monolithic integration
- Dual line EMI symmetrical (I/O) low-pass filter
- Very low PCB space consumption: 1.0 mm x 1.45 mm
- High efficiency in EMI filtering
- High efficiency in ESD suppression(IEC 61000-4-2 level 4).
- Lead free package
- Very thin package: 0.6 mm max

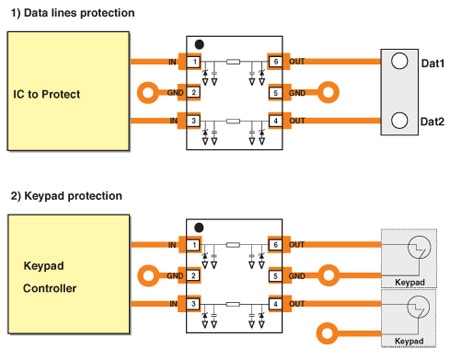

电路原理图
EDA Symbols, Footprints and 3D Models
STMicroelectronics - EMIF02-1003M6
Speed up your design by downloading all the EDA symbols, footprints and 3D models for your application. You have access to a large number of CAD formats to fit with your design toolchain.
Please select one model supplier :
Symbols
Footprints
3D models
所有资源
| Resource title | 版本 | Latest update | Actions | Details | 下載 |
|---|
HW Models (1)
| Resource title | 版本 | Latest update | Actions | Options | ||
|---|---|---|---|---|---|---|
| ZIP | 1.0 | 07 Apr 2025 | 07 Apr 2025 |
CAD Symbol & Footprint models (2)
| Resource title | 版本 | Latest update | Actions | Options | ||
|---|---|---|---|---|---|---|
| ZIP | 1.0 | 10 Jun 2021 | 10 Jun 2021 | |||
| ZIP | 1.2 | 18 Mar 2020 | 18 Mar 2020 |
Quality and Reliability
| Part Number | Marketing Status | Package | Grade | 符合RoHS级别 | Longevity Commitment | Longevity Starting Date | Material Declaration** |
|---|---|---|---|---|---|---|---|
| EMIF02-1003M6 | Active 产品已量产 | QFN-6L | Industrial | Ecopack2 | - | - |
(**) st.com上提供的材料声明表单可能是基于包装系列中最常用的封装的通用文档。因此，它们可能不是100%适用于特定的设备。有关特定设备的信息，请联系 销售支持。
You’re now leaving st.com and will be re-directed to our Partner’s website.
For the latest innovations and solutions from ST, sign up for our newsletters.
Sample & Buy
| Part Number | 供货状态 | Budgetary Price (US$)*/Qty | 从ST订购 | Order from distributors | Package | Packing Type | RoHS | Country of Origin | ECCN (US) | ECCN (EU) | Operating Temperature (°C) (min) | Operating Temperature (°C) (max) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| EMIF02-1003M6 | | | distributors 无法联系到经销商，请联系我们的销售办事处 |
EMIF02-1003M6 Active
