产品概要
描述
The VNI2140J is a monolithic device designed using STMicroelectronics' VIPower technology.
The device drives two independent resistive or inductive loads with one side connected to ground. Active current limitation prevents a drop in system power supply in cases of shorted-load, and built-in thermal shutdown protects the chip from damage due to overtemperature and short-circuit.
In overload conditions, channel turns OFF and ON automatically to maintain the junction temperature between TTSD and TR. If the case temperature reaches TCSD, the overloaded channel is turned OFF and restarts only when case temperature decreases down to TCR. In order to avoid high-peak current from the supply, when more than one channel is overloaded the TCSD restart is not simultaneous. Non overloaded channels continue to operate normally. The open-drain diagnostics output indicates overtemperature conditions and open-load in OFF-state.
-
性能一览
- Nominal current: 0.75 A per channel
- Shorted-load protections
- Junction overtemperature protection
- Case overtemperature protection for thermal independence of the channels
- Thermal case shutdown restart not simultaneous for the various channels
- Protection against loss of ground
- Current limitation 1 A per channel
- Undervoltage shutdown
- Open-load in OFF-state and short to VCC detection
- Open-drain diagnostic outputs
- 3.3 V CMOS/TTL compatible inputs
- Fast demagnetization of inductive loads
- Conforms to IEC 61131-2

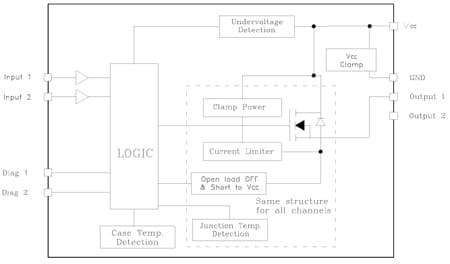

电路原理图
特别推荐
EDA Symbols, Footprints and 3D Models
STMicroelectronics - VNI2140J
Speed up your design by downloading all the EDA symbols, footprints and 3D models for your application. You have access to a large number of CAD formats to fit with your design toolchain.
Please select one model supplier :
Symbols
Footprints
3D models
所有资源
| Resource title | 版本 | Latest update | Actions | Details | 下載 |
|---|
IBIS models (1)
| Resource title | 版本 | Latest update | Actions | Options | ||
|---|---|---|---|---|---|---|
| ZIP | 1.0 | 29 Feb 2024 | 29 Feb 2024 |
Quality and Reliability
| Part Number | Marketing Status | Package | Grade | 符合RoHS级别 | Longevity Commitment | Longevity Starting Date | Material Declaration** |
|---|---|---|---|---|---|---|---|
| VNI2140J | Active 产品已量产 | PowerSSO 12 | Industrial | Ecopack1 | 15 | 2020-01-01T00:00:00.000+01:00 | |
| VNI2140JTR | Active 产品已量产 | PowerSSO 12 | Industrial | Ecopack1 | 15 | 2020-01-01T00:00:00.000+01:00 |
