TDE1798DP

批量生产
Design Win

0.5A智能电源开关

下载数据手册 Order Direct

产品概述

描述

The TDE1798 is an interface circuit delivering high currents and capable of driving any type of loads.

The output is protected from short-circuits withthe positive supply or ground. In addition thermal shut down is provided to keep the IC from overheating.If internal dissipation becomes too high,the driver will shut down to prevent excessive heating. The output stays null after the overload is off, if the reset input is low. If high, the output will alternatively switch on and off until the overload is removed.

Higher current can be obtained by paralleling the outputs of several devices. In this case, the device scan be reactivated simultaneously after an over load if their reset input are connected in parallel.

The device operates over a wide range of supply voltages from standard ±15 operational amplifier supplies to the single ±6V or +35V used for industrial electronic systems. Input voltage can be higher than the VCC. The output is low in open ground conditions.

  • 所有功能

    • NO NEED FOR EXTERNAL CLAMPING DI-ODE FOR DEMAGNETIZATION ENERGY UP TO 150mJ
    • SINK AND SOURCE ALARM OUTPUTS
    • SEVERAL DEVICES CAN BE CONNECTED IN PARALLEL
    • INPUT VOLTAGE CAN BE HIGHER THAN VCC
    • DIFFERENTIAL INPUTS FOR ANY LOGIC SYSTEM COMPATIBILITY
    • HIGH OUTPUT CURRENT 500mA
    • INTERNAL THERMAL PROTECTION WITH EXTERNAL RESET AND SYNCRONIZATION CAPABILITY
    • SHORT-CIRCUIT PROTECTION UP TO VCC = +35V
    • OUTPUT VOLTAGE CAN BE LOWER THAN GROUND FOR FAST INDUCTIVE LOAD DEMAGNETIZATION
    • LARGE SUPPLY VOLTAGE RANGE FROM 6V TO 35V
    • OPEN GROUND PROTECTION

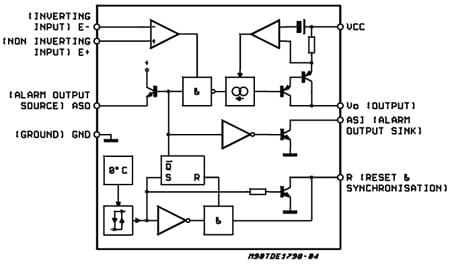

电路原理图

EDA符号、封装和3D模型

STMicroelectronics - TDE1798DP

Speed up your design by downloading all the EDA symbols, footprints and 3D models for your application. You have access to a large number of CAD formats to fit with your design toolchain.

Please select one model supplier :

Symbols

符号

Footprints

封装

3D model

3D模型

质量与可靠性

产品型号 Marketing Status 等级规格 符合RoHS级别 材料声明**
TDE1798DP
批量生产
DIP-8 工业 Ecopack2

TDE1798DP

Package:

DIP-8

Material Declaration**:

PDF XML

Marketing Status

批量生产

Package

DIP-8

Grade

Industrial

RoHS Compliance Grade

Ecopack2

(**) st.com上提供的材料声明表单可能是基于包装系列中最常用的封装的通用文档。因此,它们可能不是100%适用于特定的设备。有关特定设备的信息,请联系 销售支持
