产品概要
描述
L6726A is a single-phase step-down controller with integrated high-current drivers that provides complete control logic, protections and reference voltage to realize in an easy and simple way general DC-DC converters by using a compact SO-8 package.
Device flexibility allows managing conversions with power input VIN as low as 1.5V and device supply voltage ranging from 5V to 12V.
L6726A provides simple control loop with transconductance error amplifier. The integrated 0.8V reference allows regulating output voltage with ±1% accuracy over line and temperature variations. Oscillator is internally fixed to 270kHz.
L6726A provides programmable over current protection. Current information is monitored across the Low-Side mosfet RdsON saving the use of expensive and space-consuming sense resistors.
FB disconnection protection prevents excessive and dangerous output voltages in case of floating FB pin.
-
性能一览
- LS-LESS start up
- Programmable soft-start
- FB disconnection protection
- Disable function
- SO-8 package
- Sensorless and programmable OCP across Low-side RdsON
- 0.8V internal reference
- Flexible power supply from 5V to 12V
- 1% output voltage accuracy
- Power conversion input as low as 1.5V
- Adjustable output voltage
- Oscillator internally fixed at 270kHz
- High-current integrated drivers

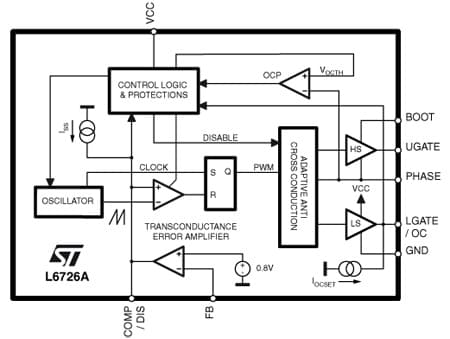

电路原理图
eDesignSuite
eDesignSuite 是一套全面且易于使用的设计辅助工具，旨在帮助您简化系统开发过程，并支持广泛的ST产品。
电源管理设计中心
组件的热电模拟器
信号调节设计工具
NFC/RFID计算器
电源管理设计中心
电源设计工具
电源管理设计中心
LED照明设计工具
电源管理设计中心
数字电源工作台
电源管理设计中心
电源树设计器
组件的热电模拟器
STPOWER Studio
组件的热电模拟器
PCB Thermal Simulator
组件的热电模拟器
AC开关模拟器
组件的热电模拟器
整流二极管模拟器
组件的热电模拟器
Twister Sim
组件的热电模拟器
TVS模拟器
组件的热电模拟器
Estimate
信号调节设计工具
有源滤波器
信号调节设计工具
比较器
信号调节设计工具
低侧电流检测
信号调节设计工具
高侧电流检测
NFC/RFID计算器
NFC电感
NFC/RFID计算器
UHF链路预算
NFC/RFID计算器
NFC调谐电路
EDA Symbols, Footprints and 3D Models
STMicroelectronics - L6726A
Speed up your design by downloading all the EDA symbols, footprints and 3D models for your application. You have access to a large number of CAD formats to fit with your design toolchain.
Please select one model supplier :
Symbols
Footprints
3D models
Quality and Reliability
| Part Number | Marketing Status | Package | Grade | 符合RoHS级别 | Longevity Commitment | Longevity Starting Date | Material Declaration** |
|---|---|---|---|---|---|---|---|
| L6726ATR | NRND 不推荐用于新设计。量产仅供支持现有生产。 | SO-8 | Industrial | Ecopack3 | - | - | |
L6726ATR
Package:
SO-8Material Declaration**:
(**) st.com上提供的材料声明表单可能是基于包装系列中最常用的封装的通用文档。因此，它们可能不是100%适用于特定的设备。有关特定设备的信息，请联系 销售支持。
You’re now leaving st.com and will be re-directed to our Partner’s website.
For the latest innovations and solutions from ST, sign up for our newsletters.
Sample & Buy
| Part Number | 供货状态 | Budgetary Price (US$)*/Qty | 从ST订购 | Order from distributors | Package | Packing Type | RoHS | Country of Origin | ECCN (US) | ECCN (EU) | Operating Temperature (°C) (min) | Operating Temperature (°C) (max) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L6726ATR | | | distributors 无法联系到经销商，请联系我们的销售办事处 |
L6726ATR NRND
