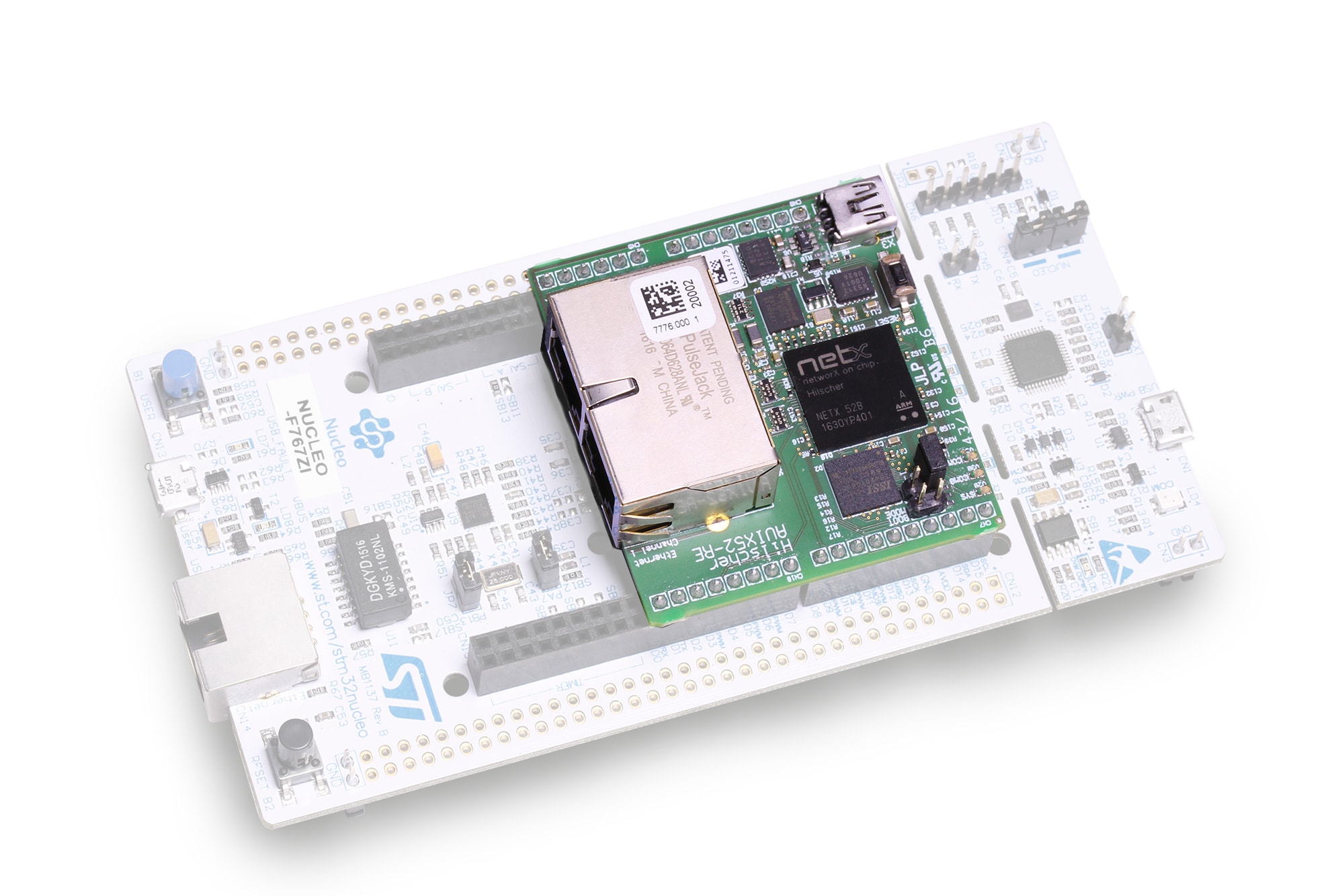

I-NUCLEO-NETX netSHIELD 90-RE is an STM32 Nucleo expansion board with Arduino-compatible connectors.
It is compatible with STM32 Nucleo-64 and Nucleo-144.
netSHIELD 90-RE enables users to connect an STM32-based application to all market relevant real-time Ethernet industrial networks with best-in-class real-time capabilities, like PROFINET®, Ethernet/IP™, EtherCAT and others.
The extension board features a netX 90 system-on-chip (SoC) from Hilscher.
The netX 90 SoC architecture is designed from the ground up for the highest demands on flexibility, determinism and performance in terms of multi-protocol capability, and low latency for short cycle times. The heterogeneous multi-core architecture features an Arm processor core coupled with a flexible communication subsystem (xC) to support a variety of industrial applications.
The communication subsystem that is the protocol stack runs independently on the netX 90 SoC and requires only small memory and very limited CPU resources from the STM32 host microcontroller. A protocol-specific firmware image for the netX 90 network controller is stored in a serial flash memory.
Key features:
- STM32 connected via SPI to the netX 90 system-on-chip (SoC)
- One piece of hardware for all industrial Real-time Ethernet systems
- Supports the protocols: PROFINET® IRT and RT devices, EtherCAT SubDevice, Ethernet/IP™ Adapter, POWERLINK Controlled Node, Modbus®/TCP Client/Server
- Two RJ45 ports with Real-time Ethernet switch for line and ring topologies
- Power supply via Mini-USB connector
- Reset button
- Boot mode jumper
- netX 90 firmware flash programming via USB
- netX 90 protocol-stack firmware available as free download for evaluation
- STM32Cube expansion software available
