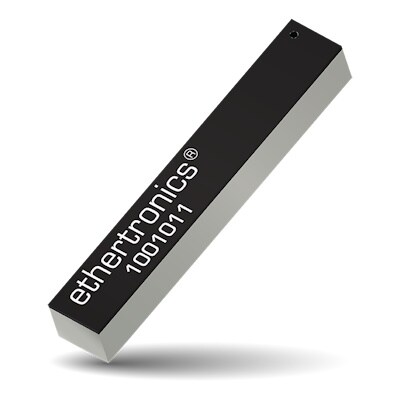

1001011: On/Off Ground GNSS (GPS/Glonass/BeiDou/Galileo) PCB antenna
When it comes to antennas, their external appearance may be deceiving, as the real difference lies within. While other antennas may feature basic PIFA or monopole designs that can be affected by their surroundings, resulting in layout complications or changes in performance based on usage position, the antennas that use patented Isolated Magnetic Dipole (IMD) technology offer a unique combination of size and performance.
Thanks to this IMD technology, advanced antenna designs can be achieved, resulting in superior reception performance for critical applications. The 1001011 antenna, for example, is versatile enough to be used in both off-ground and on-ground (over metal) environments. Additionally, with proper layout, the 1001011 can achieve ISM performance, as demonstrated in Appendix 1 of the datasheet. This greater flexibility is a key advantage of IMD technology.
- GNSS FR4 antenna
- On/Off Ground
- 22.0 x 3.2 x 3.3 mm
- 1559-1563 MHz / 1575 MHz / 1559-1591 MHz /1593-1610 MHz
- SMT
| 支持的器件 | ST87M01 |
