ST87M01

批量生产
Design Win

具有GNSS功能的超紧凑、低功耗窄带 (NB-IoT) 工业模块系列

下载数据手册

产品概述

描述

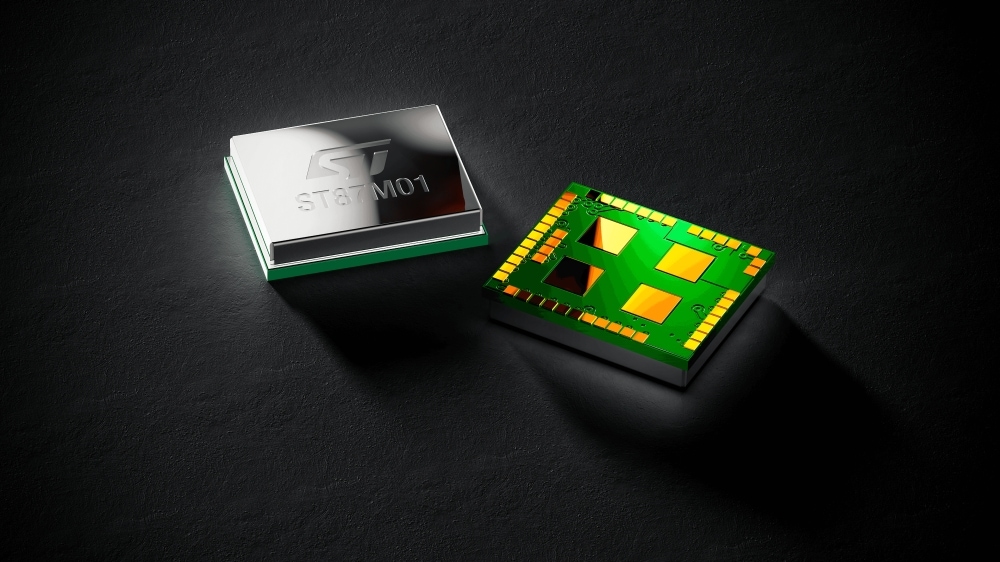

The ST87M01 is a high-performance, fully programmable, ultra-compact, low-power, certified LTE Cat NB2 NB-IoT and GNSS industrial module series offering worldwide band coverage, with advanced security features.

  • 所有功能

    • LTE, category NB2, Release 15
    • Worldwide regional band coverage
    • Single tone/Multi tone/Extended TBS and 2 HARQ
    • Up to DL: 127 kbps, UL: 159 kbps
    • eDRX and PSM support
    • Ultralow power mode 1.2 uA typical (0.5 uA typical in power-off)
    • Ultra-compact size
    • Embedded IoT internet protocols
    • Differential FOTA support
    • Up to 23 dBm power-out
    • Multiple I/F and GPIO
    • GCF certified
    • RED certified
    • Optional eSIM GSMA compliant with an additional secure element
    • Optional GNSS and A-GNSS

您可能还会喜欢...

EDA符号、封装和3D模型

STMicroelectronics - ST87M01

Speed up your design by downloading all the EDA symbols, footprints and 3D models for your application. You have access to a large number of CAD formats to fit with your design toolchain.

Please select one model supplier :

Symbols

符号

Footprints

封装

3D model

3D模型

质量与可靠性

产品型号 Marketing Status 等级规格 符合RoHS级别 材料声明**
ST87M01-1000
批量生产
SMD MODULE 工业 Ecopack2
ST87M01-1100
批量生产
SMD MODULE 工业 Ecopack2

ST87M01-1000

Package:

SMD MODULE

Material Declaration**:

PDF XML

Marketing Status

批量生产

Package

SMD MODULE

Grade

Industrial

RoHS Compliance Grade

Ecopack2

ST87M01-1100

Package:

SMD MODULE

Material Declaration**:

PDF XML

Marketing Status

批量生产

Package

SMD MODULE

Grade

Industrial

RoHS Compliance Grade

Ecopack2

(**) st.com上提供的材料声明表单可能是基于包装系列中最常用的封装的通用文档。因此,它们可能不是100%适用于特定的设备。有关特定设备的信息,请联系 销售支持
