产品概述
描述
The L6470 device, realized in analog mixed signal technology, is an advanced fully integrated solution suitable for driving two-phase bipolar stepper motors with microstepping. It integrates a dual low RDS(on)DMOS full bridge with all of the power switches equipped with an accurate on-chip current sensing circuitry suitable for non-dissipative current control and overcurrent protection. Thanks to a unique control system, a true 1/128 steps resolution is achieved. The digital control core can generate user defined motion profiles with acceleration, deceleration, speed or target position, easily programmed through a dedicated registers set. All commands and data registers, including those used to set analogue values (i.e. current control value, current protection trip point, deadtime, PWM frequency, etc.) are sent through a standard 5-Mbit/s SPI. A very rich set of protections (thermal, low bus voltage, overcurrent, motor stall) allows the design of a fully protected application, as required by the most demanding motor control applications.
-
所有功能
- Operating voltage: 8 - 45 V
- 7.0 A out peak current (3.0 A r.m.s.)
- Low RDS(on)Power MOSFETs
- Programmable speed profile and positioning
- Programmable power MOS slew rate
- Up to 1/128 microstepping
- Sensorless stall detection
- SPI interface
- Low quiescent and standby currents
- Programmable non-dissipative overcurrent protection on high and low-side
- Two-levels of overtemperature protection

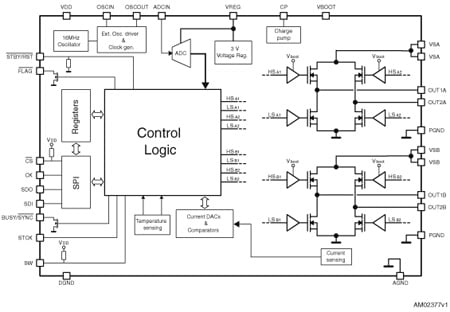

电路原理图
您可能还会喜欢...
特别推荐
EDA符号、封装和3D模型
STMicroelectronics - L6470
Speed up your design by downloading all the EDA symbols, footprints and 3D models for your application. You have access to a large number of CAD formats to fit with your design toolchain.
Please select one model supplier :
符号
封装
3D模型
质量与可靠性
| 产品型号 | Marketing Status | 包 | 等级规格 | 符合RoHS级别 | Longevity Commitment | Longevity Starting Date | 材料声明** |
|---|---|---|---|---|---|---|---|
| L6470H | 批量生产 | HTSSOP28 | 工业 | Ecopack2 | 15 | 2022-01-01T00:00:00.000+01:00 | |
| L6470HTR | 批量生产 | HTSSOP28 | 工业 | Ecopack2 | 15 | 2022-01-01T00:00:00.000+01:00 | |
| L6470PD | 批量生产 | PowerSO 36 | 工业 | Ecopack1 | 15 | 2022-01-01T00:00:00.000+01:00 | |
| L6470PDTR | 批量生产 | PowerSO 36 | 工业 | Ecopack1 | 15 | 2022-01-01T00:00:00.000+01:00 |
(**) st.com上提供的材料声明表单可能是基于包装系列中最常用的封装的通用文档。因此，它们可能不是100%适用于特定的设备。有关特定设备的信息，请联系 销售支持。
样片和购买
| 产品型号 | 供货状态 | Budgetary Price (US$)*/Qty | 从ST订购 | Order from distributors | 包 | 包装类型 | RoHS | Country of Origin | ECCN (US) | ECCN (EU) | Operating temperature (°C) | Operating Temperature (°C) (max) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 最小值 | 最大值 | |||||||||||||
| L6470HTR | | | distributors 无法联系到经销商，请联系我们的销售办事处 | |||||||||||
| L6470PDTR | | | distributors 无法联系到经销商，请联系我们的销售办事处 | |||||||||||
| L6470PD | | | distributors 无法联系到经销商，请联系我们的销售办事处 | |||||||||||
| L6470H | | | distributors 无法联系到经销商，请联系我们的销售办事处 | |||||||||||
L6470HTR 批量生产
L6470PDTR 批量生产
L6470PD 批量生产
L6470H 批量生产
