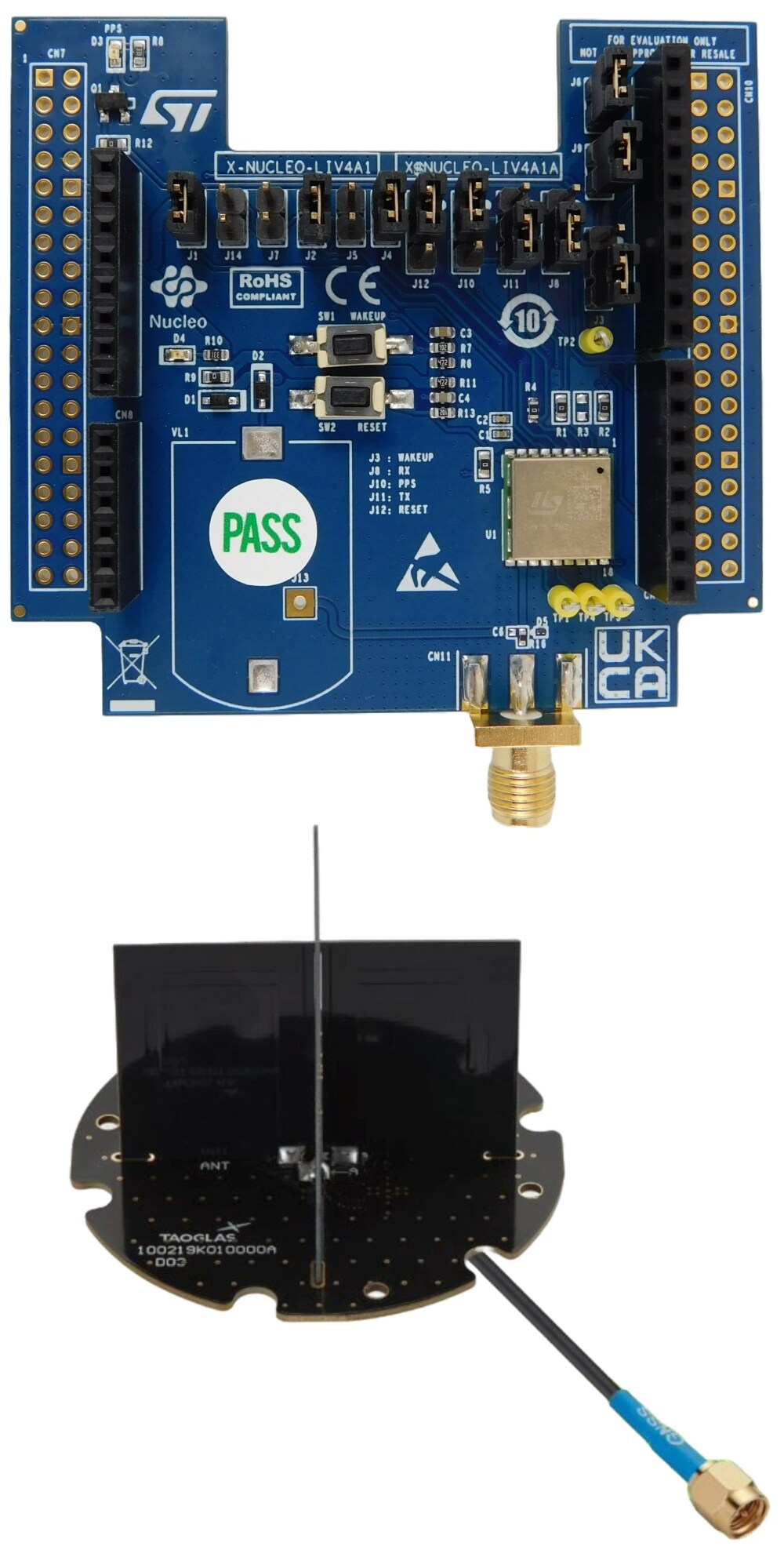

The X-NUCLEO-LIV4A1 expansion board is based on the Teseo-LIV4F tiny dual-band GNSS Low power and measurement engine modules.
It represents an affordable, easy-to-use, global navigation satellite system (GNSS) module, embedding TESEO IV single die GNSS receiver IC working simultaneously on multiple constellations GPS/Galileo/ Glonass/BeiDou/QZSS) able to provide positioning (Teseo-LIV4F) in your STM32 Nucleo project.
The Teseo-LIV4F is a compact (9.7 x 10.1 mm) module that provides superior accuracy thanks to the on-board temperature-compensated crystal oscillator (TCXO) and a reduced time-to-first fix (TTFF) with its dedicated real-time clock (RTC) oscillator.
The Teseo-LIV4F module runs the GNSS firmware (X-CUBE-GNSS1) to perform all GNSS operations including acquisition, tracking, navigation, and data output without external memory support.
The X-NUCLEO-LIV4A1 expansion board is compatible with the Arduino® UNO R3 connector and the ST morpho connector, so it can be plugged to the STM32 Nucleo development board and stacked with additional STM32 Nucleo expansion boards
The embedded cross dipole active multiband GNSS antenna is included in the package.
-
性能一览
- Operating supply voltage: 3.3 - 5 V
- Ambient temperature: +10/+50 °C
- Sensitivity: -162 dBm (tracking mode)
- Interfaces:
- a UARTport
- an I²Cport
- Configurable digital I/O
- EXTINT input for wakeup
- NMEA protocol
- Assisted GNSS:
- Autonomous AGNSS
- Real-timeserver-based
- Simultaneous multi constellation and multi band GNSS
- GPS
- Galileo
- Glonass
- BeiDou
- QZSS
- Compatible with STM32 Nucleo boards
- Compatible with the Arduino™ UNO R3 connector
- SMA female antenna connector
- CE Certified
- RoHS and WEEE compliant
