产品概述
描述

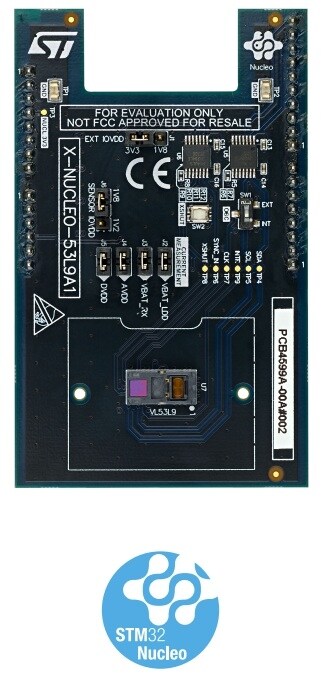

The X-NUCLEO-53L9A1 is an expansion board for any STM32 Nucleo board equipped with the Arduino® R 3 connectors. It provides a complete evaluation kit that allows you to learn, evaluate, and develop applications based on the VL53L9CX series Time-of-Flight sensors.
Several ST expansion boards can be stacked through the Arduino® connectors, which allow, for example, the development of VL53L9CX series ToF applications with a Bluetooth® LE or Wi-Fi interfaces.
-
所有功能
- Time-of-Flight expansion board based on the VL53L9CX for STM32 Nucleo:
- dToF 3D LiDAR all-in-one module with high resolution of 2.3 K zones
- Wide 54 x 42° FoV, providing accurate ranging from 5 cm to 9 m
- Accurate absolute ranging distance, independent of the reflectance of the target
- Operating at up to a maximum 100 frames per second over a range of 5 cm to 9 meters, this low-power module consumes just 150 mW typical system power
- Histogram-based technology
- Great ranging performance, including under strong ambient light conditions, with a range of cover glass materials
- Multiobject detection capability
- 0.25, 0.5, and 1 mm spacers to simulate air gaps
- One cover glass to protect the sensor from dust
- Outputs rich 2D data (signal, reflectance, ambient), empowering advanced AI, and processing capabilities
- Compatible with STM32 Nucleo development boards
- Equipped with Arduino® UNO R3 connectors
- Full system software supplied, including code examples and graphical user interface
- RoHS, CE, UKCA, and China RoHS compliant
- Time-of-Flight expansion board based on the VL53L9CX for STM32 Nucleo:
您可能还会喜欢...
特别推荐
所有资源
| 资源标题 | 版本 | 更新时间 | Actions | 細節 | 下載 |
|---|
Board Manufacturing Specifications (1)
| 资源标题 | 版本 | 更新时间 | Actions | Options | ||
|---|---|---|---|---|---|---|
| ZIP | 1.0 | 31 Mar 2026 | 31 Mar 2026 |
BOM (1)
| 资源标题 | 版本 | 更新时间 | Actions | Options | ||
|---|---|---|---|---|---|---|
| 1.0 | 31 Mar 2026 | 31 Mar 2026 |
Schematic Pack (1)
| 资源标题 | 版本 | 更新时间 | Actions | Options | ||
|---|---|---|---|---|---|---|
| 1.0 | 31 Mar 2026 | 31 Mar 2026 |
质量与可靠性
| 料号 | Marketing Status | 包 | 等级规格 | 符合RoHS级别 | WEEE Compliant | 材料声明** |
|---|---|---|---|---|---|---|
| X-NUCLEO-53L9A1 | 预览 产品尚在设计阶段 | CARD | 工业 | Ecopack2 | Yes | |
X-NUCLEO-53L9A1
Package:
CARDMaterial Declaration**:
(**) st.com上提供的材料声明表单可能是基于包装系列中最常用的封装的通用文档。因此，它们可能不是100%适用于特定的设备。有关特定设备的信息，请联系 销售支持。
