The STEVAL-TDR027V1 demonstration board is a portable UHF 2-way radio designed as a platform for evaluating the performance of the PD84008L-E LDMOS RF power transistor.

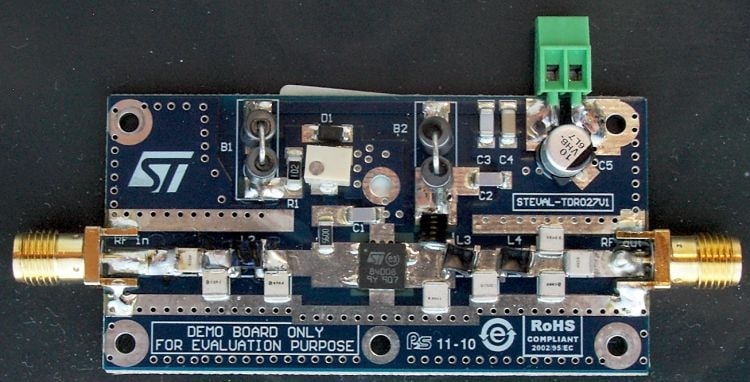

Board photo for STEVAL-TDR027V1

性能一览
Excellent thermal stability

Frequency: 380 - 512 MHz

Supply voltage: 7.2 V

Output power: > 6 W

Power gain: 11.7 ± 0.5 dB

Efficiency: 46% - 71%

Load mismatch: 20:1 all phases

BeO-free amplifier
