产品概述
描述

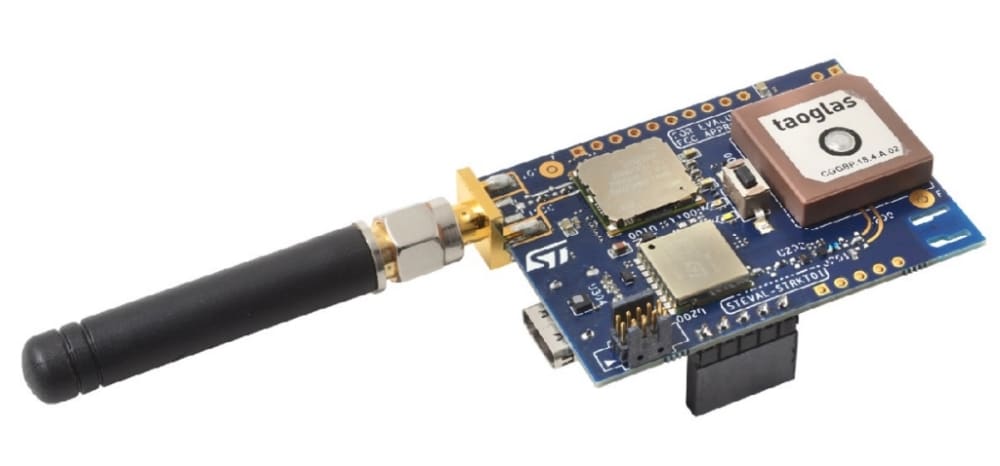

The STEVAL-STRKT01 LoRa® IoT tracker is designed and optimized to implement the latest technologies in IoT tracker applications such as asset, people and animal tracking as well as fleet management.
The evaluation board simplifies prototyping, evaluation and development of tracker innovative solutions. It comes with comprehensive software, firmware libraries, tools, battery, cables and plastic case.
Thanks to the STM32L072CZ embedded in the CMWX1ZZABZ-091 LoRa® module (by Murata), the STEVAL-STRKT01V1 allows acquiring position, managing geofence and data logging from Teseo-LIV3F GNSS module and monitoring motion (LIS2DW12) and environmental (HTS221 and LPS22HB) sensors.
The board also transmits and receives data, configurations and events to and from the cloud over a LoRaWAN™ network, or stores data locally in the M95M02-DR EEPROM.
The STEVAL-STRKT01 is a LiPo battery operated solution and implements low power strategies thanks to an enhanced power/battery management design, based on the STBC02 battery charger and the ST1PS01 step-down converter, to ensure long battery autonomy. The STUSB1600A addresses 5 V USB Type-C port management and offers high voltage protection against short circuits.
-
所有功能
- Optimized IoT tracker solution over LoRaWAN™ network with simultaneous multi-constellation GNSS positioning and geofencing support
- Battery operated solution with smart power management architecture
- First IoT ST reference embedding a USB Type-C connector and a port controller
- Environmental and motion sensors
- Data logging
- STM32Cube function pack (FP-ATR-LORA1)
- High flexibility to cover different application profiles:
- asset tracker
- people and animal tracker
- fleet management
- WEEE and RoHS compliant
- 2006/66/EC Directive compliant
- Contains trasmitter module FCC ID: VPYCMABZ and IC ID: 772C-CMABZ
- CE certified
您可能还会喜欢...
精选 视频
特别推荐
所有资源
| 资源标题 | 版本 | 更新时间 |
|---|
Board Manufacturing Specifications (1)
| 资源标题 | 版本 | 更新时间 | ||
|---|---|---|---|---|
| ZIP | 1.0 | 04 Feb 2019 | 04 Feb 2019 |
物料清单 (1)
| 资源标题 | 版本 | 更新时间 | ||
|---|---|---|---|---|
| 1.0 | 27 Nov 2018 | 27 Nov 2018 |
Schematic Pack (1)
| 资源标题 | 版本 | 更新时间 | ||
|---|---|---|---|---|
| 1.0 | 27 Nov 2018 | 27 Nov 2018 |
质量与可靠性
| 产品型号 | Marketing Status | 包 | 等级规格 | 符合RoHS级别 | WEEE Compliant | 材料声明** |
|---|---|---|---|---|---|---|
| STEVAL-STRKT01 | NRND | CARD | 工业 | Ecopack2 | Yes | |
STEVAL-STRKT01
Package:
CARDMaterial Declaration**:
(**) st.com上提供的材料声明表单可能是基于包装系列中最常用的封装的通用文档。因此，它们可能不是100%适用于特定的设备。有关特定设备的信息，请联系 销售支持。
样片和购买
| 产品型号 | 供货状态 | Budgetary Price (US$)*/Qty | 从ST订购 | Order from distributors | 包 | 包装类型 | RoHS | Country of Origin | ECCN (US) | ECCN (EU) | 供应商 | 核心产品 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| STEVAL-STRKT01 | | | distributors 无法联系到经销商，请联系我们的销售办事处 |
|
|
STEVAL-STRKT01 NRND
