STEVAL-ILL083V1

NRND
Design Win

基于HVLED815PF和SPBTLE-RF的智能家居照明

下载数据摘要

产品概述

描述

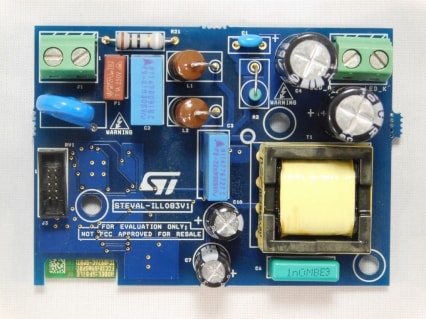

The STEVAL-ILL083V1 evaluation board is an offline LED driver based on HVLED815PF and SPBTLE-RF very low power module for Bluetooth Smart v4.1 connectivity. The interfacing between the HVLED815PF and the SPBTLE-RF is managed by a STM32L0. The microcontroller and the connectivity module are supplied by the LED driver through the primary side auxiliary winding.

The embedded SPBTLE-RF Bluetooth v4.1 module lets you control the STEVAL-ILL083V1 board through the Smart Home Lighting Android™ application and can help reduce development and certification time.

The board can also be rendered visible to cloud applications with the addition of a wireless bridge.

  • 所有功能

    • LED driver main features
      • 10 W flyback converter with quasi-resonant operation
      • Primary side regulation, no optocoupler required
      • High power factor and low THD
      • Open/short LED management
      • ±1% LED current regulation
      • Dimming range: 2.5% to 100%
    • BLE connectivity main features
      • Works with Android App - Smart Home Lighting
      • Allows lamp remote power-on / power-off
      • Allows lamp remote dimming
    • Standby power consumption: <0.5 W
    • RoHS compliant

您可能还会喜欢...

质量与可靠性

产品型号 Marketing Status 等级规格 符合RoHS级别 WEEE Compliant 材料声明**
STEVAL-ILL083V1
NRND
CARD 工业 Ecopack2 -

STEVAL-ILL083V1

Package:

CARD

Material Declaration**:

Marketing Status

NRND

Package

CARD

Grade

Industrial

RoHS Compliance Grade

Ecopack2

(**) st.com上提供的材料声明表单可能是基于包装系列中最常用的封装的通用文档。因此,它们可能不是100%适用于特定的设备。有关特定设备的信息,请联系 销售支持
