产品概述
描述

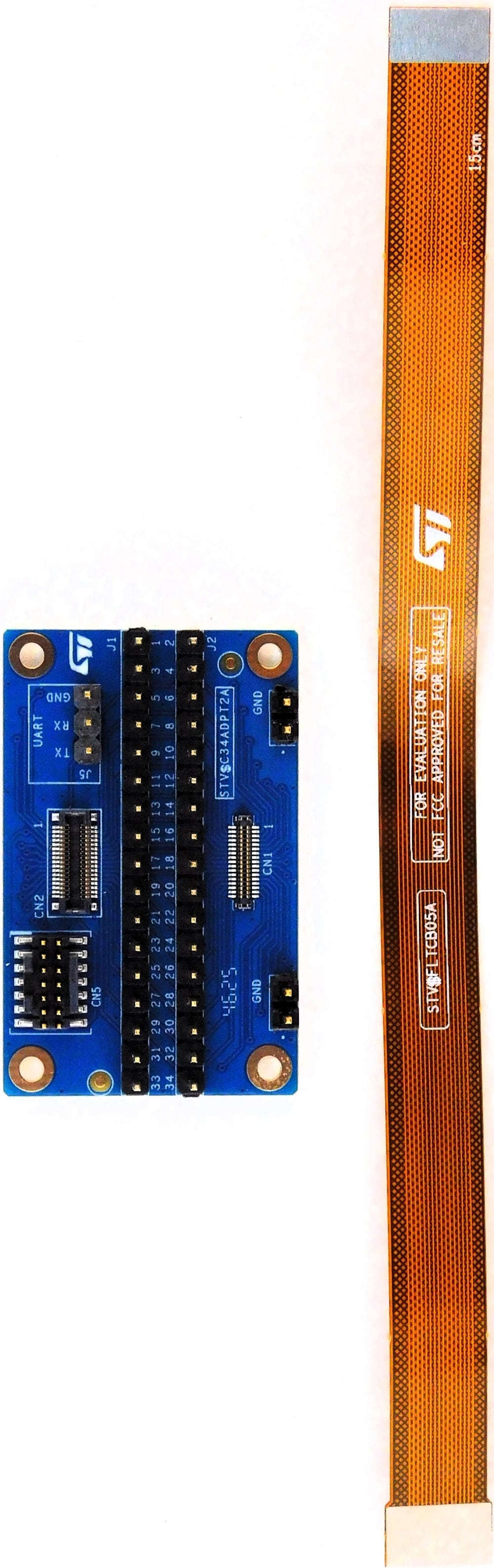

The STEVAL-C34ADPTK1 kit includes the STEVAL-C34ADPT2 adapter board and the STEVAL-FLTCB05 flex cable, measuring 15 cm in length, to ensure reliable connections.
The kit is designed to enhance connectivity and expand the interfacing capabilities of ST evaluation boards with CN34 connectors.
The STEVAL-C34ADPTK1 is suitable for developers and engineers aiming to integrate additional peripherals and modules into their evaluation setups. Additionally, the kit supports debugging through exposed spare pins.
-
所有功能
- Adapter board:
- Small form factor with pass-through feature
- All pin exposed
- Dedicated connectors for serial communication
- Arm SVD connector
- STEVAL-FLTCB05
- 15 cm flex cable
- Compatible with ST evaluation boards featuring the C34 connector, including:
- STEVAL-STWINBX1
- STEVAL-ASTRA1B
- STEVAL-PROTEUS1
- STEVAL-NBIOTV1
- Adapter board:
您可能还会喜欢...
所有资源
| 资源标题 | 版本 | 更新时间 |
|---|
Board Manufacturing Specifications (1)
| 资源标题 | 版本 | 更新时间 | |||
|---|---|---|---|---|---|
| ZIP | 1.0 | 22 Jan 2026 | 22 Jan 2026 |
BOM (1)
| 资源标题 | 版本 | 更新时间 | |||
|---|---|---|---|---|---|
| 1.0 | 22 Jan 2026 | 22 Jan 2026 |
Schematic Pack (1)
| 资源标题 | 版本 | 更新时间 | |||
|---|---|---|---|---|---|
| 1.0 | 22 Jan 2026 | 22 Jan 2026 |
质量与可靠性
| 料号 | Marketing Status | 包 | 等级规格 | 符合RoHS级别 | WEEE Compliant | Longevity Commitment | Longevity Starting Date | 材料声明** |
|---|---|---|---|---|---|---|---|---|
| STEVAL-C34ADPTK1 | 批量生产 | CARD | 工业 | Ecopack2 | Yes | - | - | |
STEVAL-C34ADPTK1
Package:
CARDMaterial Declaration**:
(**) st.com上提供的材料声明表单可能是基于包装系列中最常用的封装的通用文档。因此，它们可能不是100%适用于特定的设备。有关特定设备的信息，请联系 销售支持。
You’re now leaving st.com and will be re-directed to our Partner’s website.
For the latest innovations and solutions from ST, sign up for our newsletters.
样片和购买
| 料号 | 供货状态 | Budgetary Price (US$)*/Qty | 从ST订购 | Order from distributors | 包 | 包装类型 | RoHS | Country of Origin | ECCN (US) | ECCN (EU) | 供应商 | 核心产品 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| STEVAL-C34ADPTK1 | | | distributors 无法联系到经销商，请联系我们的销售办事处 |
|
|
STEVAL-C34ADPTK1 批量生产
