STEVAL-A6983NV1

批量生产
Design Win

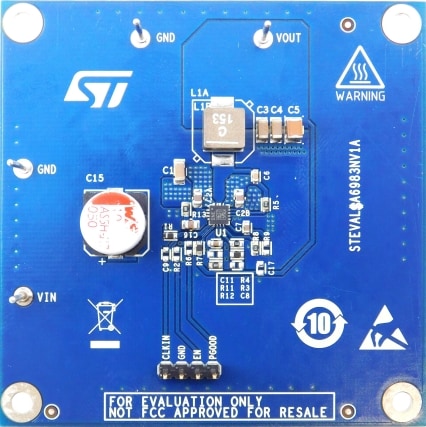

Evaluation board based on DC-DC converter buck regulator A6983NQTR

下载数据摘要 Order Direct

产品概述

描述

The STEVAL-A6983NV1 is an easy to use synchronous monolithic step-down regulator capable of delivering up to 3 A DC to the load.

The wide input voltage range makes the device suitable for a broad range of applications.

The STEVAL-A6983NV1 is based on a peak current mode architecture and is packaged in a QFN16 (3 x 3 mm) with internal compensation thus minimizing design complexity and size.

The device is designed for applications active during car parking, so it maximizes the efficiency at the light-load with the controlled output voltage ripple.

The STEVAL-A6983NV1 allows the switching frequency to be selected in the 200 kHz - 2.3 MHz range with optional spread spectrum for improved EMC.

The EN pin provides enable/disable functionality. The typical shutdown current is 2 μA when disabled.

As soon as the EN pin is pulled-up the device is enabled and the internal 1.3 ms soft-start takes place.

The STEVAL-A6983NV1 features Power Good opencollector that monitors the FB voltage.

Pulse by pulse current sensing on both power elements implements an effective constant current protection and thermal shutdown prevents thermal run-away.

  • 所有功能

    • AEC-Q100 Grade 1 qualified
    • Operating temperature range: -40 to +150°C for Tj
    • 3.5 to 38 V operating input voltage
    • Output voltage from 0.85 V to VIN
    • 3.3 and 5 V fixed output voltage versions
    • 3 A DC output current
    • Internal compensation network
    • Noise sensitive applications
    • 2 μA shutdown current
    • Internal soft-start
    • High voltage VIN compatible enable
    • Output overvoltage protection
    • Output voltage sequencing
    • Thermal protection
    • 0.2 to 2.2 MHz programmable switching frequency
    • Stable with low ESR capacitor min. 22 µF
    • Optional spread spectrum for improved EMC
    • Power good
    • Synchronization with an external clock
    • QFN16 (3 x 3 mm) package

质量与可靠性

产品型号 Marketing Status 等级规格 符合RoHS级别 WEEE Compliant 材料声明**
STEVAL-A6983NV1
批量生产
CARD 工业 Ecopack2 Yes

STEVAL-A6983NV1

Package:

CARD

Material Declaration**:

Marketing Status

批量生产

Package

CARD

Grade

Industrial

RoHS Compliance Grade

Ecopack2

(**) st.com上提供的材料声明表单可能是基于包装系列中最常用的封装的通用文档。因此,它们可能不是100%适用于特定的设备。有关特定设备的信息,请联系 销售支持

样片和购买

Swipe or click the button to explore more details Don't show this again
产品型号
供货状态
Budgetary Price (US$)*/Qty
从ST订购
Order from distributors
包装类型
RoHS
Country of Origin
ECCN (US)
ECCN (EU)
供应商
核心产品
Board production status
STEVAL-A6983NV1
Available at distributors

经销商的可用性 STEVAL-A6983NV1

代理商名称
地区 库存 最小订购量 第三方链接

代理商库存报告日期:

无法联系到经销商,请联系我们的销售办事处

STEVAL-A6983NV1 批量生产

Budgetary Price (US$)*/Qty:
-
包:
包装类型:
RoHS:
Country of Origin:
ECCN (US):
ECCN (EU):

产品型号:

STEVAL-A6983NV1

供应商:

-

核心产品:

A6983NQTR

Board production status:

-

代理商名称

代理商库存报告日期:

Swipe or click the button to explore more details Don't show this again

(*) 建议转售单价(美元)仅用于预算用途。如需以当地货币计价的报价,请联系您当地的 ST销售办事处 或我们的 经销商
