The STDES-MORFEA3 reference design demonstrates the VD6283TX capabilities to detect a good multicolor photoplethysmography (PPG).
Photoplethysmography is a simple and low-cost optical technique, which can be used to detect the blood volume changes in the microvascular bed of tissue. It is a noninvasive method for measurements at the skin surface.
The VD6283TX is a miniaturized spectrometer capable to acquire some part of the light in the visible range and a part in the infrared. The VD6283TX is used in mobile phones to adjust the white color in images.
The devices included in this reference design are sold under ST terms and conditions. They are not designed, intended, nor authorized for use as critical components in: life-support systems, any FDA Class 3 medical devices, medical devices with a similar or equivalent classification in a foreign jurisdiction, or any devices intended for implantation in the human body.

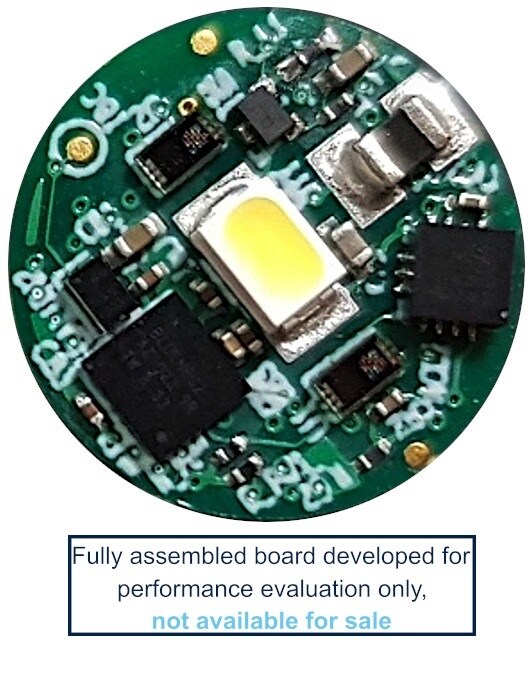

The STDES-MORFEA3 is a fully assembled board developed for performance evaluation only, not available for sale.
-
所有功能
- Photoplethysmography technique with a cost-effective solution
- Optical front-end with two VD6283TX to maximize the reading coverage
- Full data acquisition and transmission thanks to the BlueNRG-2
- Compact design: <200 mm2
特别推荐
所有资源
| 资源标题 | 版本 | 更新时间 |
|---|
MCSDK Board Description (1)
| 资源标题 | 版本 | 更新时间 | ||
|---|---|---|---|---|
| ZIP | 1.0 | 14 Oct 2022 | 14 Oct 2022 |
物料清单 (1)
| 资源标题 | 版本 | 更新时间 | ||
|---|---|---|---|---|
| 1.0 | 14 Oct 2022 | 14 Oct 2022 |
Schematic Pack (1)
| 资源标题 | 版本 | 更新时间 | ||
|---|---|---|---|---|
| 1.0 | 14 Oct 2022 | 14 Oct 2022 |
质量与可靠性
| 产品型号 | Marketing Status | 包 | 等级规格 | 符合RoHS级别 | WEEE Compliant | Longevity Commitment | Longevity Starting Date | 材料声明** |
|---|---|---|---|---|---|---|---|---|
| STDES-MORFEA3 | 批量生产 | - | 工业 | - | Yes | - | - | |
