产品概述
描述

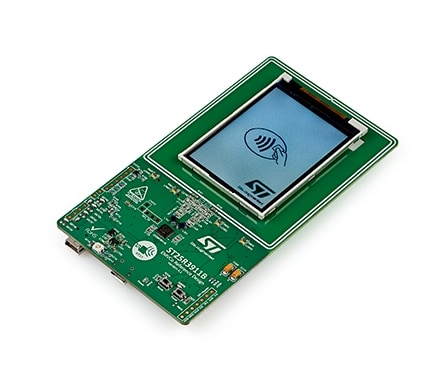

The ST25R3911B-EMVCO reference design is a ready to use contactless payment terminal implementing a complete EMVCo Level 1 software stack. It allows contactless testing to be made with appropriate test systems, according to the EMVCo specifications.
The ST25R3911B-EMVCO reference design is equipped with a 2.4 inch resistive touch panel, surrounded by a two turn RF antenna, it shows a typical use case in contactless payment.
The STM32L476 100-pin LQFP MCU serves as host controller for the ST25R3911B and connected peripherals.
-
所有功能
- Based on ST25R3911B high performance HF reader with 1.4 W output power
- ISO14443A, ISO14443B (more protocols supported on ST25R3911B-DISCO kit)
- Up to 1.4 W output power with differential antenna
- DPO (Dynamic Power Output)
- User selectable and automatic gain control
- QFN32, 5 mm x 5 mm package
- STM32L476 32-bit microcontroller with 1 Mbyte of Flash memory
- 65 mm x 74 mm, two turn antenna etched on the PCB
- Micro-USB connector for communication with the host PC and board supply
- Integrated ST-LINK/V2 for programming and debugging of the STM32L476
- 2.4 inch resistive touch TFT connected in 16 bit parallel mode
- S-Touch controller
- Comprehensive Device Test Environment (DTE) for control of the EMVCo Level 1 firmware
- Based on ST25R3911B high performance HF reader with 1.4 W output power
您可能还会喜欢...
特别推荐
质量与可靠性
| 产品型号 | Marketing Status | 包 | 等级规格 | 符合RoHS级别 | WEEE Compliant | 材料声明** |
|---|---|---|---|---|---|---|
| ST25R3911B-EMVCO | 批量生产 | CONTRACTS | 工业 | Ecopack2 | - | |
ST25R3911B-EMVCO
Package:
CONTRACTSMaterial Declaration**:
(**) st.com上提供的材料声明表单可能是基于包装系列中最常用的封装的通用文档。因此，它们可能不是100%适用于特定的设备。有关特定设备的信息，请联系 销售支持。
