ST25R3916B-EMVCO

批量生产
Design Win

EMVCo reference design for the ST25R3916B high performance NFC universal device

下载数据摘要

产品概述

描述

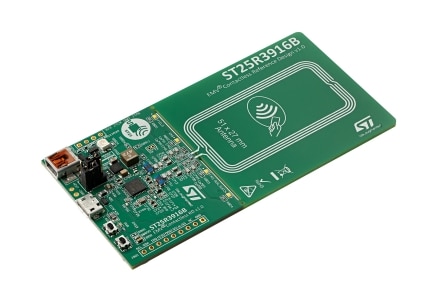

The ST25R3916B-EMVCO kit is a reference design representing the contactless part of a payment terminal, including the example code for the EMVCo level 1 stack.

The board is equipped with a small (51 mm x 27 mm) four turns RF antenna, with the option to connect customer made antennas.

The STM32L476 (packaged in a 100-pin LQFP) serves as host controller for the ST25R3916B and the connected peripherals.

  • 所有功能

    • Based on the ST25R3916B NFC reader for payment, consumer and industrial applications, in QFN32, 5 mm x 5 mm package
    • ISO 14443A and ISO 14443B protocols supported
    • Dynamic power output (DPO) and active wave shaping (AWS)
    • User selectable and automatic gain control
    • 51 mm x 27 mm, four turns antenna etched on the PCB
    • STM32L476 32-bit microcontroller with 1 Mbyte embedded Flash memory, with integrated ST-LINK/V2 for programming and debugging
    • Micro-USB connector for communication with the host PC and board supply
    • Comprehensive device test environment (DTE) for controlling the EMVCo Level 1 firmware
    • EMVCo 3.1a L1 compliant

您可能还会喜欢...

质量与可靠性

产品型号 Marketing Status 等级规格 符合RoHS级别 WEEE Compliant 材料声明**
ST25R3916B-EMVCO
批量生产
CONTRACTS 工业 Ecopack2 -

ST25R3916B-EMVCO

Package:

CONTRACTS

Material Declaration**:

Marketing Status

批量生产

Package

CONTRACTS

Grade

Industrial

RoHS Compliance Grade

Ecopack2

(**) st.com上提供的材料声明表单可能是基于包装系列中最常用的封装的通用文档。因此,它们可能不是100%适用于特定的设备。有关特定设备的信息,请联系 销售支持
