产品概述
描述

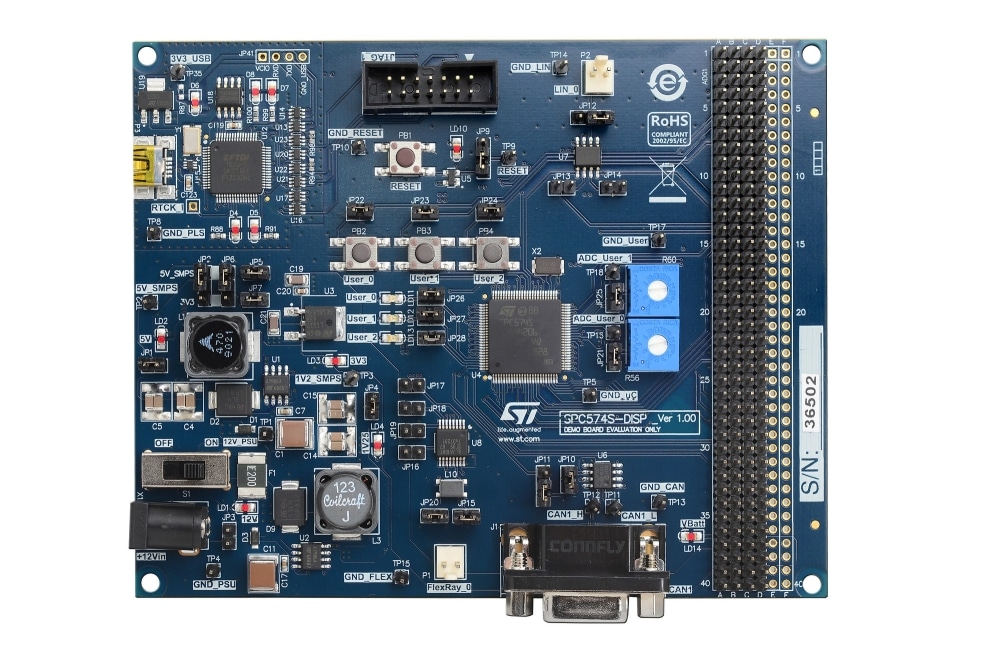

The SPC574S-DISP is the ideal discovery board for accelerating the development and securing a fast time-to-market, with a perfect balance among performance, functionalities and cost.
Featuring SPC57 4S Line, it addresses a wide range of automotive applications such as brushless DC electric motors.
SPC57 4S Line is designed to meet the ASIL-D highest functional safety level, in compliance with ISO26262. The SPC574S-DISP provides full access to all CPU’s signals and GPIO’s, and exposes a wide set of connectivity options, such as CAN-FD, FlexRay, LIN, UART.
It offers easy debug both with a JTAG port and the on-board PLS debugger-programmer. PLS Universal Debug Engine Software is available for free download and includes a full feature code size limited evaluation license. It also includes extension headers (4 x 40 pins) to connect prototyping boards or additional modules, as well as push switches and LEDs for HMI customization and the power supply (EU plug) in the box for immediate plug and play.
ST’s SPC5 Studio, an Eclipse-based Integrated Development Environment (IDE), providing a comprehensive framework to design, build and deploy your own embedded application SPC5 Studio is available for free download and includes multiple free application firmware examples ready for use. Learn more and share your experience joining ST Community.
-
所有功能
- Featuring SPC574S64E3, a 32-bit power architecture microcontroller with dual core e200z4d, 1.5 MB flash, eTQFP100 pins
- 1 CAN FD port (DB9 connector)
- 1 FlexRay, 1 line port (with transceiver)
- PLS integrated programmer - debugger
- JTAG interface: (standard 7 x 2 male, 0.1")
- 1 USB virtual COM port
- 3 push buttons, 3 LEDs for user purposes, reset push button
- 2 potentiometers for ADC quick evaluation
- All GPIOs and signals accessible by a 4 x 40, 0.1" pin grid array allowing connection of an additional board
- Board supply: 12 VDC (external power supply)
- Board size 132 mm x 105 mm
您可能还会喜欢...
所有资源
| 资源标题 | 版本 | 更新时间 |
|---|
Board Manufacturing Specifications (1)
| 资源标题 | 版本 | 更新时间 | ||
|---|---|---|---|---|
| 1.0 | 21 Nov 2019 | 21 Nov 2019 |
物料清单 (1)
| 资源标题 | 版本 | 更新时间 | ||
|---|---|---|---|---|
| 1.0 | 21 Nov 2019 | 21 Nov 2019 |
Schematic Pack (1)
| 资源标题 | 版本 | 更新时间 | ||
|---|---|---|---|---|
| 1.0 | 21 Nov 2019 | 21 Nov 2019 |
质量与可靠性
| 产品型号 | Marketing Status | 符合RoHS级别 | Longevity Commitment | Longevity Starting Date | 材料声明** |
|---|---|---|---|---|---|
| SPC574S-DISP | 批量生产 | Ecopack1 | - | - | |
SPC574S-DISP
Package:
Ecopack1Material Declaration**:
(**) st.com上提供的材料声明表单可能是基于包装系列中最常用的封装的通用文档。因此，它们可能不是100%适用于特定的设备。有关特定设备的信息，请联系 销售支持。
样片和购买
| 产品型号 | 供货状态 | Budgetary Price (US$)*/Qty | 从ST订购 | Order from distributors | 包 | 包装类型 | RoHS | Country of Origin | ECCN (US) | ECCN (EU) | 供应商 | Specific features | WEEE Compliant | 核心产品 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SPC574S-DISP | | | distributors 无法联系到经销商，请联系我们的销售办事处 |
|
|
|
|
SPC574S-DISP 批量生产
