产品概要
描述

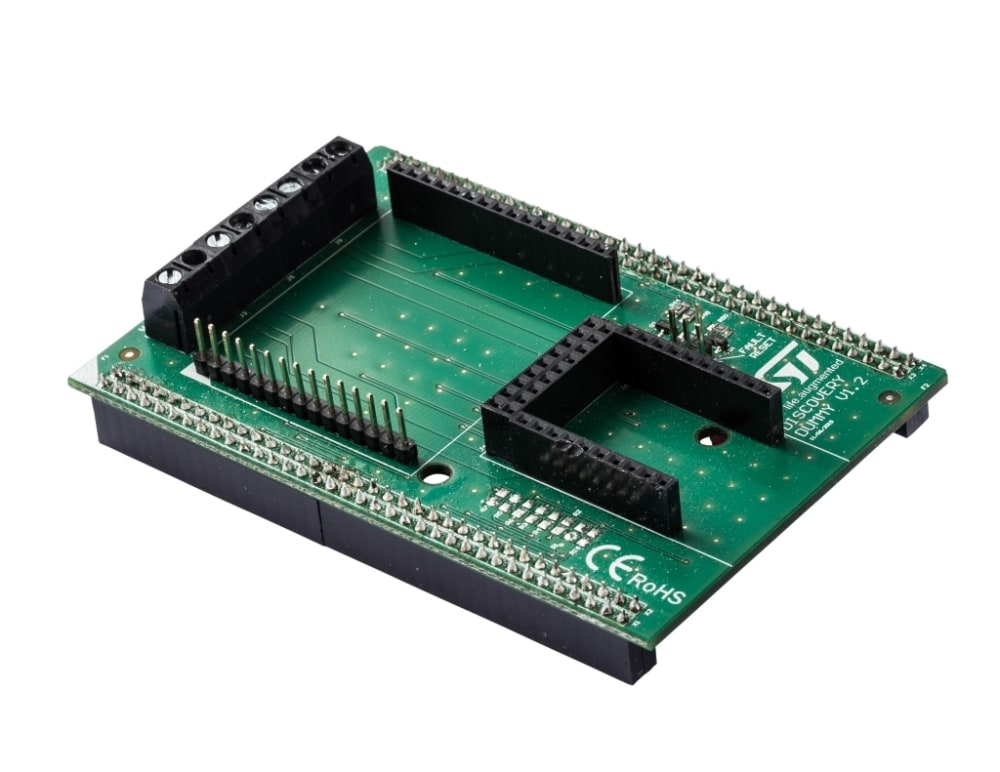

The SPC5-EV-ADIS adapter board extends the range of Automotive Discovery Ecosystem enabling the connection of M0-7 high side driver and H-bridge easy boards (EV-xxxx) to SPC560B-DIS control board. Easy board functionality is controlled through a dedicated Graphic user interface connected to control board with USB cable. Control board requires a dedicated application firmware.
-
性能一览
- Board size 100 x 55 mm
- Two extension headers (2 x 36 pin - 100 mil) for quick connection to SPC560B-DIS discovery board
- Extension headers for quick connection of M0-7 easy board
- Extension headers for quick connection of H-Bridge easy board
- Controllable by dedicated GUI for HSD or for H-Bridge available on www.st.com
- Free ready to run application firmware for HSD or for H-Bridge available on www.st.com, to support quick evaluation and development
