产品概述
描述

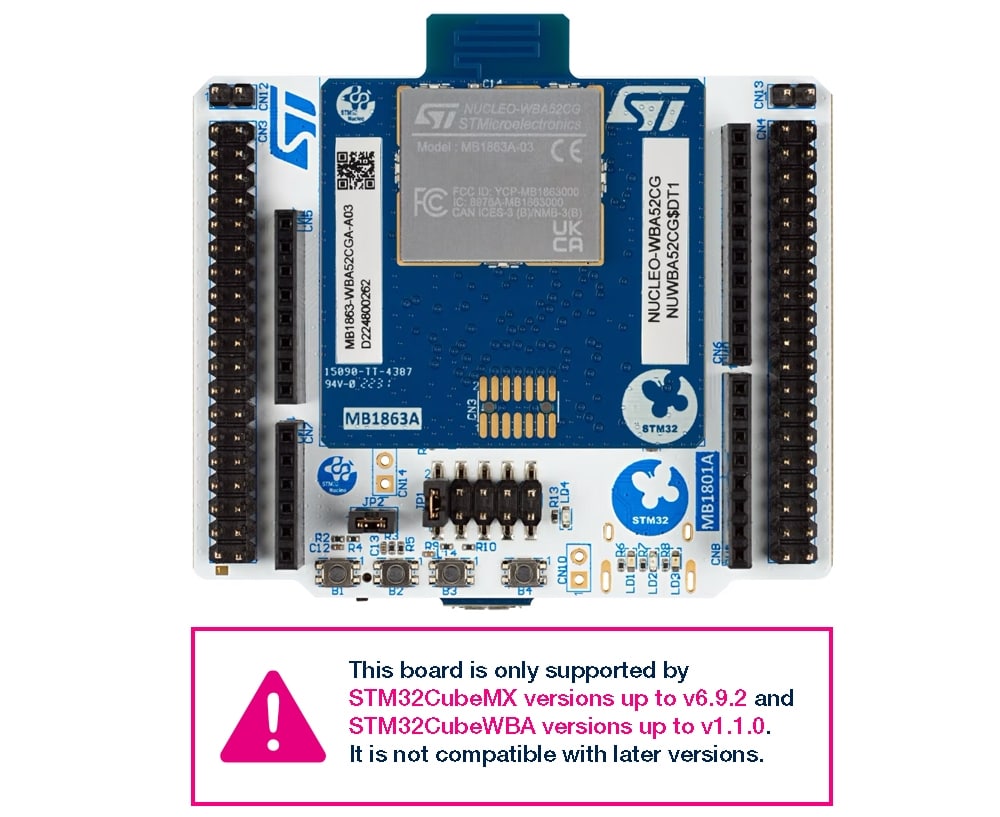

NUCLEO-WBA52CG, NUCLEO-WBA55CG, and NUCLEO-WBA65RI are Bluetooth® Low Energy wireless and ultra‑low‑power boards embedding a powerful and ultra‑low‑power radio compliant with the Bluetooth® Low Energy SIG specification v5.4, IEEE 802.15.4-2015 PHY and MAC, supporting Thread, Matter, and Zigbee®.
The ARDUINO® Uno V3 connectivity support and the ST morpho headers allow the easy expansion of the functionality of the STM32 Nucleo open development platform with a wide choice of specialized shields.
-
所有功能
- Ultra-low-power wireless STM32WBA series microcontroller based on the Arm® Cortex®‑M33 core, featuring:
- 1 Mbyte of flash memory and 128 Kbytes of SRAM in a UFQFPN48 package for NUCLEO-WBA52CG and NUCLEO-WBA55CG
- 2 Mbytes of flash memory and 512 Kbytes of SRAM in a VFQFPN68 package for NUCLEO-WBA65RI
- MCU RF board (MB1863/MB1803/MB2130):
- 2.4 GHz RF transceiver supporting Bluetooth® specification v5.4
- IEEE 802.15.4-2015 PHY and MAC, supporting Thread, Matter, and Zigbee® (for NUCLEO-WBA55CG and NUCLEO-WBA65RI)
- Arm® Cortex®‑M33 CPU with TrustZone®, MPU, DSP, and FPU
- Integrated PCB antenna
- Three user LEDs
- Three user and one reset push-buttons
- Board connectors:
- USB Micro-B (NUCLEO-WBA52CG) or USB Type-C® (NUCLEO-WBA55CG and NUCLEO-WBA65RI)
- ARDUINO® Uno V3 expansion connector
- ST morpho headers for full access to all STM32 I/Os
- Flexible power-supply options: ST-LINK USB VBUS or external sources
- On-board STLINK-V3 debugger/programmer with USB re-enumeration capability: mass storage, Virtual COM port, and debug port
- Comprehensive free software libraries and examples available with the STM32CubeWBA MCU Package
- Support of a wide choice of Integrated Development Environments (IDEs) including IAR Embedded Workbench®, MDK-ARM, and STM32CubeIDE
- Ultra-low-power wireless STM32WBA series microcontroller based on the Arm® Cortex®‑M33 core, featuring:
您可能还会喜欢...
所有资源
| 资源标题 | 版本 | 更新时间 |
|---|
Board Manufacturing Specifications (4)
| 资源标题 | 版本 | 更新时间 | ||
|---|---|---|---|---|
| ZIP | 3.0 | 04 Mar 2025 | 04 Mar 2025 | |
| ZIP | 3.0 | 04 Mar 2025 | 04 Mar 2025 | |
| ZIP | 1.0 | 22 Sep 2023 | 22 Sep 2023 | |
| ZIP | 1.0 | 22 Sep 2023 | 22 Sep 2023 |
物料清单 (2)
| 资源标题 | 版本 | 更新时间 | ||
|---|---|---|---|---|
| ZIP | 3.0 | 04 Mar 2025 | 04 Mar 2025 | |
| ZIP | 1.0 | 22 Sep 2023 | 22 Sep 2023 |
Schematic Pack (4)
| 资源标题 | 版本 | 更新时间 | ||
|---|---|---|---|---|
| 1.0 | 20 Sep 2023 | 20 Sep 2023 | ||
| 1.0 | 13 Mar 2024 | 13 Mar 2024 | ||
| 2.0 | 27 Jan 2025 | 27 Jan 2025 | ||
| 1.0 | 22 Sep 2023 | 22 Sep 2023 |
质量与可靠性
| 产品型号 | Marketing Status | 符合RoHS级别 | Longevity Commitment | Longevity Starting Date | 材料声明** |
|---|---|---|---|---|---|
| NUCLEO-WBA52CG | NRND | Ecopack1 | - | - | |
NUCLEO-WBA52CG
Package:
Ecopack1Material Declaration**:
(**) st.com上提供的材料声明表单可能是基于包装系列中最常用的封装的通用文档。因此，它们可能不是100%适用于特定的设备。有关特定设备的信息，请联系 销售支持。
