产品概要
描述

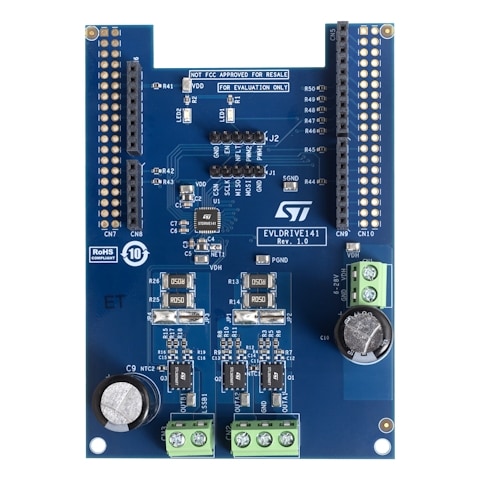

The EVLDRIVE141 brushed DC motor driver expansion board is based on the STDRIVE141.
It provides an affordable and easy-to-use solution for the implementation of brushed DC motor driving applications. The EVLDRIVE141 can drive up to three motors. The ADC integrated in the STDRIVE141 allows the sensing of the current with a selectable amplification gain. The EVLDRIVE141 is compatible with the Arduino® UNO R3 connector and most STM32 Nucleo boards.
-
性能一览
- Voltage range from 6 V to 28 V
- Phase current up to 8 ARMS for each motor
- Adaptive MOSFET gate control
- Low consumption mode
- Serial peripheral interface (SPI), 24 bits
- Embedded ADC for current sensing
- Full protection set including:
- VDS monitoring
- Overvoltage/undervoltage lock-out
- Overtemperature warning and shutdown
- Timeout watchdog
- Compatible with Arduino® UNO R3 connector and STM32 Nucleo boards
Quality and Reliability
| Part Number | Marketing Status | Package | Grade | 符合RoHS级别 | WEEE Compliant | Longevity Commitment | Longevity Starting Date | Material Declaration** |
|---|---|---|---|---|---|---|---|---|
| EVLDRIVE141 | Preview 产品尚在设计阶段 | CARD | Industrial | Ecopack1 | - | - | - | |
EVLDRIVE141
Package:
CARDMaterial Declaration**:
(**) st.com上提供的材料声明表单可能是基于包装系列中最常用的封装的通用文档。因此，它们可能不是100%适用于特定的设备。有关特定设备的信息，请联系 销售支持。
