Add-serial memories on Nucleo as you would add a SSD Drive on your laptop motherboard.
描述

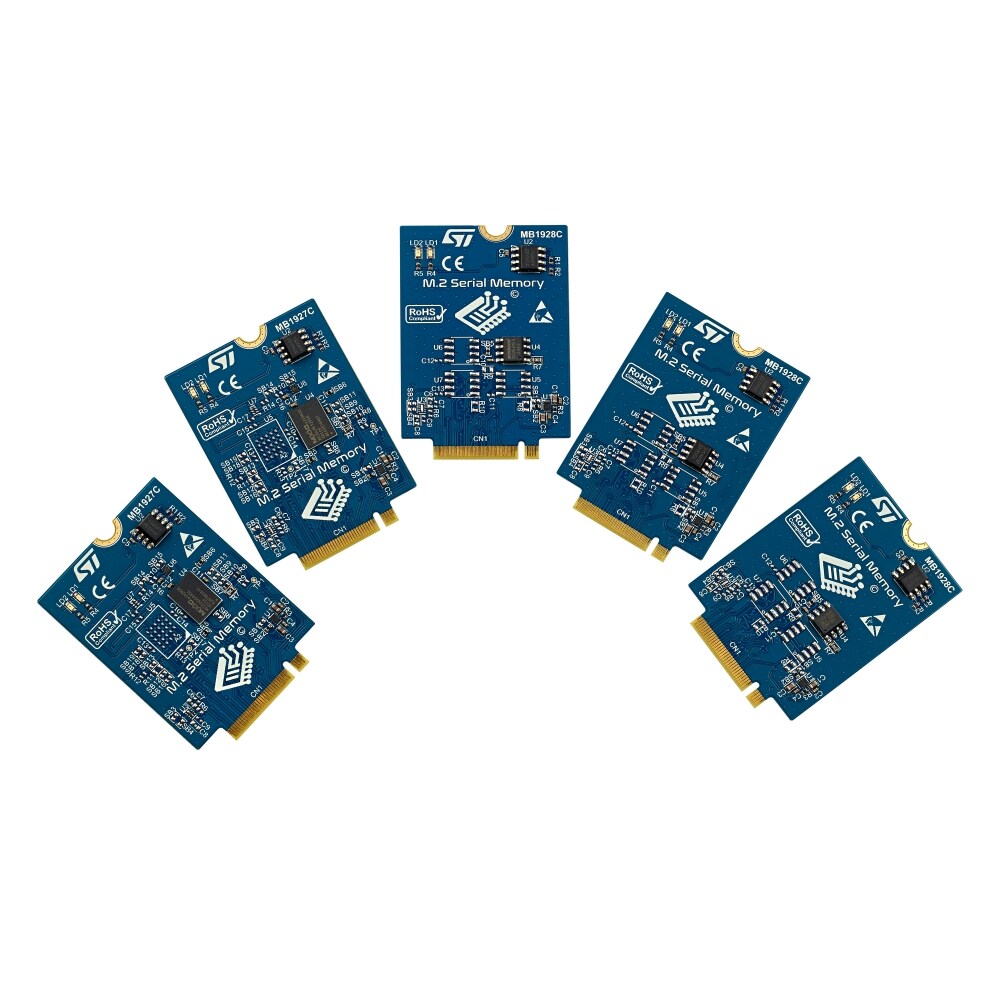

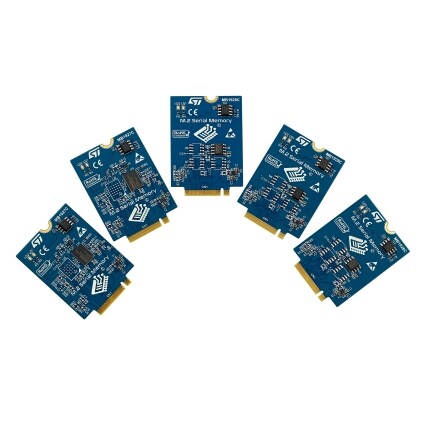

B-M2MEM-PACK1 is a serial memory pack containing five different nonvolatile serial memory add-on boards. These boards can be connected to specific Nucleo-144 boards using the M.2 Key A serial memory connector and allow the development of applications requiring an external flash memory.
The boards contain serial flash memories from different memory vendors, covering a wide range of operating voltages and maximum clock frequencies. They offer multiple serial bus schemes and memory interfaces.
Each board offers a red and green LED light, an I2C identification EEPROM for software detection, and one serial flash memory IC. The latter is powered by an LDO, controlled by the MCU of the connected Nucleo-144 board.
All boards contain empty sockets for customization in 8-pin SOP or 24-pin BGA device footprints.
-
所有功能
- Five different add-on boards
- Multiple memory vendors
- Different operating voltages and clock frequencies
- Multiple serial bus schemes and memory interfaces
- Each board offers:
- One serial memory IC powered by an MCU-controlled LDO
- I2C identification EEPROM
- One red and green LED
- Empty sockets for customization in 8-pin SOP or 24-pin BGA device footprints
- M.2 Key A serial memory connector
所有资源
| 资源标题 | 版本 | 更新时间 |
|---|
Board Manufacturing Specifications (4)
| 资源标题 | 版本 | 更新时间 | |||
|---|---|---|---|---|---|
| ZIP | 1.0 | 10 Nov 2025 | 10 Nov 2025 | ||
| ZIP | 1.0 | 10 Nov 2025 | 10 Nov 2025 | ||
| ZIP | 1.0 | 10 Nov 2025 | 10 Nov 2025 | ||
| ZIP | 1.0 | 10 Nov 2025 | 10 Nov 2025 |
BOM (2)
| 资源标题 | 版本 | 更新时间 | |||
|---|---|---|---|---|---|
| ZIP | 1.0 | 10 Nov 2025 | 10 Nov 2025 | ||
| ZIP | 1.0 | 10 Nov 2025 | 10 Nov 2025 |
Schematic Pack (5)
| 资源标题 | 版本 | 更新时间 | |||
|---|---|---|---|---|---|
| 1.0 | 10 Nov 2025 | 10 Nov 2025 | |||
| 1.0 | 10 Nov 2025 | 10 Nov 2025 | |||
| 1.0 | 10 Nov 2025 | 10 Nov 2025 | |||
| 1.0 | 10 Nov 2025 | 10 Nov 2025 | |||
| 1.0 | 10 Nov 2025 | 10 Nov 2025 |
质量与可靠性
| 料号 | Marketing Status | 符合RoHS级别 | Longevity Commitment | Longevity Starting Date | 材料声明** |
|---|---|---|---|---|---|
| B-M2MEM-PACK1 | 批量生产 | Ecopack1 | - | - | |
