产品概述
描述

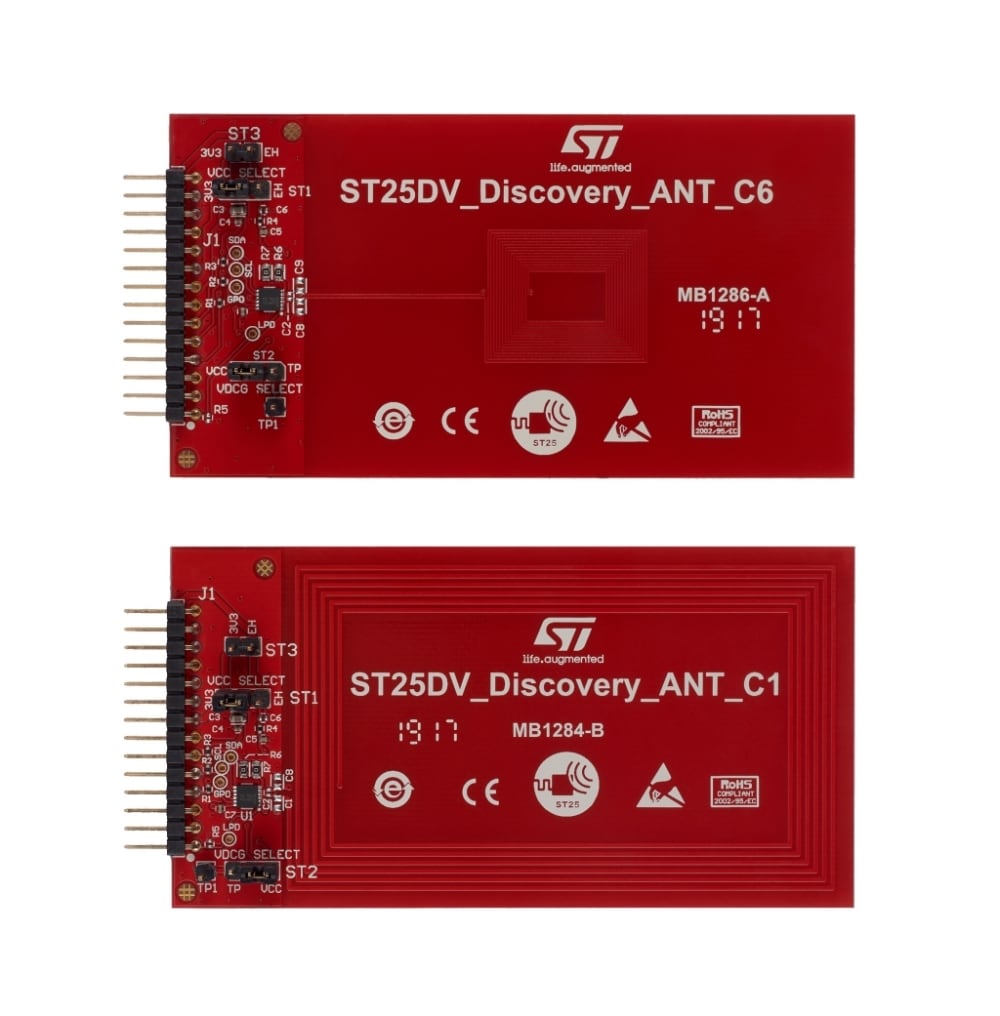

The ANT-1-6-ST25DV antenna reference kit is a ready-to-use kit containing two boards, each of them featuring a ST25DV04K Dual Interface EEPROM IC connected to an RF etched antenna on one side, and to an I2C bus on the other side.
The ANT-1-6-ST25DV antenna kit allows system designers to evaluate the ST25DV04K performance, capabilities, and to get started with their design.
To demonstrate the energy harvesting function, the ANT-1-6-ST25DV can be used in conjunction with the DEMO-CR95HF-A demonstration board.
The ANT-1-6-ST25DV PCB files can be downloaded from www.st.com.
-
所有功能
- Ready-to-use printed circuit board (PCB) including:
- 45 mm x 75 mm (ST25DV_Discovery_ANT_C1) and 18 mm x 24 mm (ST25DV_Discovery_ANT_C6), 13.56 MHz single layer inductive antenna etched on the PCB
- ST25DV04K dual interface EEPROM
- Mates with ST25Dx_DISCOVERY_MBOARD connector
- Energy harvesting output (VOUT) with a 10 nF capacitance filtering circuit
- Ready-to-use printed circuit board (PCB) including:
