产品概要
描述

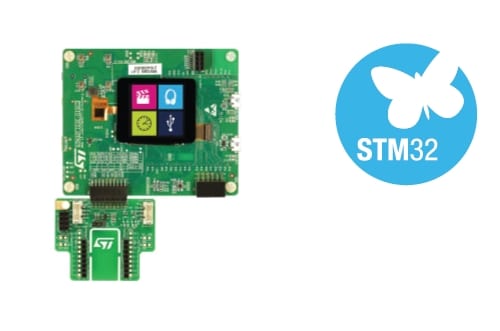

With the STM32F723 Discovery kit (32F723EDISCOVERY), users develop applications easily on the STM32F7 Series high-performance microcontrollers based on Arm® Cortex®‑M7 core. The Discovery kit combines the STM32F723 features with 240×240 pixel LCD with touch panel, SAI audio codec, MEMS microphones, USBs OTG HS and OTG FS, Quad-SPI NOR Flash memory, and microSD™ card connector.
An embedded ST-LINK/V2-1 debugger/programmer is included. Specialized add-on boards can be connected through the ARDUINO® Uno V3, Pmod™, or STMod+ expansion connectors.
-
性能一览
- STM32F723IEK6 microcontroller with 512 Kbytes of Flash memory and 176+16 Kbytes of SRAM, in a BGA176 package
- 240×240-pixel TFT LCD with a parallel interface and capacitive touch panel
- USB OTG HS and OTG FS
- SAI audio codec
- Four digital ST-MEMS microphones
- 8‑Mbit 16‑bit wide PSRAM
- 512-Mbit Quad-SPI NOR Flash memory
- User and reset push-buttons
- Board connectors:
ESP‑01 Wi‑Fi Two user USB with Micro-AB Jack for audio line with stereo input and output Stereo speaker output Pmod™ connector STMod+ connector to embedded fanout daughterboard compatible with MikroElektronika mikroBUS™ adapter Click boards™, ESP‑01, and Seeed Studio™ Grove modules. Provision for headers for direct breadboard plug‑in ARDUINO 3.3 or 5.0 V power supply output for external applications - Flexible power-supply options: ST-LINK USB VBUS, user USB HS and FS connectors, or external sources
- Comprehensive free software libraries and examples available with the STM32Cube MCU Package
- On-board ST-LINK/V2-1 debugger/programmer with USB re-enumeration capability: mass storage, Virtual COM port, and debug port
- Support of a wide choice of Integrated Development Environments (IDEs) including IAR Embedded Workbench®, MDK-ARM, and STM32CubeIDE
所有资源
| Resource title | 版本 | Latest update | Actions | Details | 下載 |
|---|
Board Manufacturing Specifications (4)
| Resource title | 版本 | Latest update | Actions | Options | ||
|---|---|---|---|---|---|---|
| ZIP | 2.0 | 21 Dec 2021 | 21 Dec 2021 | |||
| ZIP | 1.1 | 21 Dec 2021 | 21 Dec 2021 | |||
| ZIP | 2.2 | 15 Oct 2024 | 15 Oct 2024 | |||
| ZIP | 2.2 | 15 Oct 2024 | 15 Oct 2024 |
BOM (2)
| Resource title | 版本 | Latest update | Actions | Options | ||
|---|---|---|---|---|---|---|
| ZIP | 2.0 | 21 Dec 2021 | 21 Dec 2021 | |||
| ZIP | 2.1 | 15 Oct 2024 | 15 Oct 2024 |
Schematic Pack (3)
| Resource title | 版本 | Latest update | Actions | Options | ||
|---|---|---|---|---|---|---|
| 1.1 | 21 Dec 2021 | 21 Dec 2021 | ||||
| 1.0 | 21 Dec 2021 | 21 Dec 2021 | ||||
| 1.1 | 15 Oct 2024 | 15 Oct 2024 |
Quality and Reliability
| Part Number | Marketing Status | 符合RoHS级别 | Longevity Commitment | Longevity Starting Date | Material Declaration** |
|---|---|---|---|---|---|
| STM32F723E-DISCO | Active 产品已量产 | Ecopack1 | - | - | |
STM32F723E-DISCO
Package:
Ecopack1Material Declaration**:
(**) st.com上提供的材料声明表单可能是基于包装系列中最常用的封装的通用文档。因此，它们可能不是100%适用于特定的设备。有关特定设备的信息，请联系 销售支持。
You’re now leaving st.com and will be re-directed to our Partner’s website.
For the latest innovations and solutions from ST, sign up for our newsletters.
Sample & Buy
| Part Number | 供货状态 | Budgetary Price (US$)*/Qty | 从ST订购 | Order from distributors | Package | Packing Type | RoHS | Country of Origin | ECCN (US) | ECCN (EU) | Supplier | Specific features | WEEE Compliant | Core Product | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| STM32F723E-DISCO | | | distributors 无法联系到经销商，请联系我们的销售办事处 |
|
|
|
|
STM32F723E-DISCO Active
