产品概述
描述

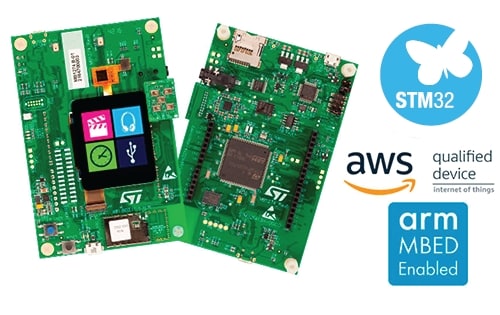

With the STM32F413 Discovery kit (32F413HDISCOVERY), users develop applications easily on the STM32F4 Series high-performance microcontrollers based on Arm® Cortex®‑M4 core. The Discovery kit combines the STM32F413 features with 240×240 pixel LCD with touch panel, LEDs, I2S audio codec, MEMS microphones, USB OTG FS, Quad-SPI NOR Flash memory, and microSD™ card connector.
An embedded ST-LINK/V2-1 debugger/programmer is included. Specialized add-on boards can be connected through the ARDUINO® Uno V3 or expansion connectors.
-
所有功能
- STM32F413ZHT6 microcontroller with 1.5 Mbytes of Flash memory and 320 Kbytes of SRAM, in an LQFP144 package
- 240×240-pixel LCD with a parallel interface and capacitive touch panel
- Integrated Wi‑Fi® module (802.11 b/g/n compliant)
- USB OTG FS
- I2S audio codec
- Stereo digital ST-MEMS microphones
- 8‑Mbit 16‑bit wide PSRAM
- 128-Mbit Quad-SPI NOR Flash memory
- 2 color user LEDs
- User and reset push-buttons
- Board connectors:
microSD™ card User USB with Micro-AB Jack for audio line with microphone input and stereo output Expansion connector to embedded MEMS microphone daughterboard featuring 5 MEMS microphones ARDUINO - Flexible power-supply options: ST-LINK USB VBUS, user USB FS connector, or external sources
- Comprehensive free software libraries and examples available with the STM32Cube MCU Package
- On-board ST-LINK/V2-1 debugger/programmer with USB re-enumeration capability: mass storage, Virtual COM port, and debug port
- Support of a wide choice of Integrated Development Environments (IDEs) including IAR Embedded Workbench®, MDK-ARM, and STM32CubeIDE
您可能还会喜欢...
特别推荐
所有资源
| 资源标题 | 版本 | 更新时间 |
|---|
Board Manufacturing Specifications (4)
| 资源标题 | 版本 | 更新时间 | ||
|---|---|---|---|---|
| ZIP | 3.0 | 06 Dec 2021 | 06 Dec 2021 | |
| ZIP | 2.0 | 06 Dec 2021 | 06 Dec 2021 | |
| ZIP | 2.0 | 06 Dec 2021 | 06 Dec 2021 | |
| ZIP | 2.0 | 06 Dec 2021 | 06 Dec 2021 |
物料清单 (2)
| 资源标题 | 版本 | 更新时间 | ||
|---|---|---|---|---|
| ZIP | 3.0 | 06 Dec 2021 | 06 Dec 2021 | |
| ZIP | 3.0 | 06 Dec 2021 | 06 Dec 2021 |
Schematic Pack (5 of 6)
| 资源标题 | 版本 | 更新时间 | ||
|---|---|---|---|---|
| 1.0 | 06 Dec 2021 | 06 Dec 2021 | ||
| 1.0 | 06 Dec 2021 | 06 Dec 2021 | ||
| 1.0 | 06 Dec 2021 | 06 Dec 2021 | ||
| 1.0 | 06 Dec 2021 | 06 Dec 2021 | ||
| 1.0 | 06 Dec 2021 | 06 Dec 2021 | ||
| 1.0 | 06 Dec 2021 | 06 Dec 2021 |
质量与可靠性
| 产品型号 | Marketing Status | 符合RoHS级别 | 材料声明** |
|---|---|---|---|
| STM32F413H-DISCO | 批量生产 | Ecopack1 | |
