产品概要
描述
The TS4871 is an audio power amplifier capable of delivering 1 W of continuous RMS output power into 8 Ω load @ 5 V.
This audio amplifier exhibits 0.1% distortion level (THD) from a 5 V supply for a Pout = 250 mW RMS. An external standby mode control reduces the supply current to less than 10 nA. An internal thermal shutdown protection is also provided.
The TS4871 has been designed for high quality audio applications such as mobile phones and to minimize the number of external components.
The unity-gain stable amplifier can be configured by external gain setting resistors.
-
性能一览
- Operating from VCC = 2.5 V to 5.5 V
- 1 W rail-to-rail output power @ VCC = 5 V, THD = 1%, f = 1 kHz, with 8 Ω load
- Ultra low consumption in standby mode (10 nA)
- 75 dB PSRR @ 217 Hz from 5 V to 2.6 V
- Ultra low pop and click
- Ultra low distortion (0.1%)
- Unity gain stable
- Available in MiniSO8

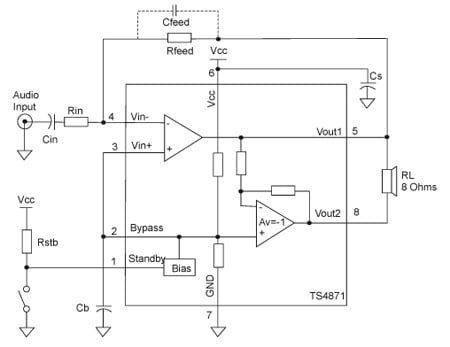

电路原理图
