产品概要
描述
The TS2007FC is a class-D audio power amplifier. Able to drive up to 1.4 W into an 8 Ω load at 5 V, it achieves better efficiency than typical class-AB audio power amplifiers.
This device can switch between two gain settings, 6 dB or 12 dB via a logic signal on the gain select pin. The pop and click reduction circuitry provides low on/off switching noise which allows the device to start within 1 ms typically.
A standby mode function (active low) keeps the current consumption down to 1 μA typically.
The TS2007FC is available in a 9-bump Flip-chip lead-free package.
-
性能一览
- Operates from VCC = 2.4 V to 5.5 V
- Standby mode active low
- Output power: 1.4 W at 5 V or 0.5 W at 3.0 V into 8 Ω with 1 % THD+N max.
- Output power: 2.3 W at 5 V or 0.75 W at 3.0 V into 4 Ω with 1 % THD+N max.
- Two fixed gain selects: 6 dB or 12 dB
- Low current consumption
- Efficiency: 86 % typ.
- Signal-to-noise ratio: 90 dB typ.
- PSRR: 68 dB typical at 217 Hz with 6 dB gain
- PWM base frequency: 280 kHz
- Low pop and click noise
- Thermal shutdown protection
- Output short-circuit protection
- Flip-chip lead-free 9-bump package with back coating in option

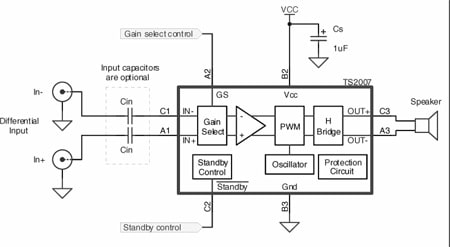

电路原理图
特别推荐
EDA Symbols, Footprints and 3D Models
STMicroelectronics - TS2007FC
Speed up your design by downloading all the EDA symbols, footprints and 3D models for your application. You have access to a large number of CAD formats to fit with your design toolchain.
Please select one model supplier :
Symbols
Footprints
3D models
Quality and Reliability
| Part Number | Marketing Status | Package | Grade | 符合RoHS级别 | Longevity Commitment | Longevity Starting Date | Material Declaration** |
|---|---|---|---|---|---|---|---|
| TS2007EIJT | Active 产品已量产 | CSP P 0.5 mm | Industrial | Ecopack3 | - | - |
(**) st.com上提供的材料声明表单可能是基于包装系列中最常用的封装的通用文档。因此，它们可能不是100%适用于特定的设备。有关特定设备的信息，请联系 销售支持。
