产品概要
描述
The TS272 devices are low cost, dual operational amplifiers designed to operate with single or dual supplies. These operational amplifiers use the ST silicon gate CMOS process allowing an excellent consumption-speed ratio. These series are ideally suited for low consumption applications.
Three power consumptions are available allowing to have always the best consumption-speed ratio:
These CMOS amplifiers offer very high input impedance and extremely low input currents. The major advantage versus JFET devices is the very low input currents drift with temperature (see figure 2).
-
性能一览
- OUTPUT VOLTAGE CAN SWING TO GROUND
- GAIN BANDWIDTH PRODUCT: 3.5MHz
- EXCELLENT PHASE MARGIN ON CAPACITIVE LOADS
- THREE INPUT OFFSET VOLTAGE SELECTIONS
- STABLE AND LOW OFFSET VOLTAGE

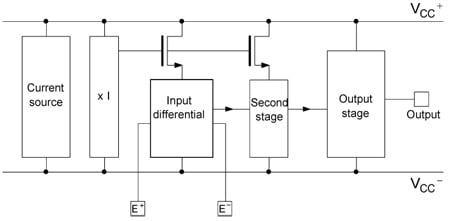

电路原理图
EDA Symbols, Footprints and 3D Models
STMicroelectronics - TS272
Speed up your design by downloading all the EDA symbols, footprints and 3D models for your application. You have access to a large number of CAD formats to fit with your design toolchain.
Please select one model supplier :
Symbols
Footprints
3D models
所有资源
| Resource title | 版本 | Latest update | Actions | Details | 下載 |
|---|
SPICE models (1)
| Resource title | 版本 | Latest update | Actions | Options | ||
|---|---|---|---|---|---|---|
| ZIP | 1.0 | 01 Aug 2015 | 01 Aug 2015 |
Quality and Reliability
| Part Number | Marketing Status | Package | Grade | 符合RoHS级别 | Longevity Commitment | Longevity Starting Date | Material Declaration** |
|---|---|---|---|---|---|---|---|
| TS272ACDT | Active 产品已量产 | SO-8 | Industrial | Ecopack3 | - | - | |
| TS272AIDT | Active 产品已量产 | SO-8 | Industrial | Ecopack3 | - | - | |
| TS272AIPT | NRND 不推荐用于新设计。量产仅供支持现有生产。 | TSSOP-8L | Industrial | Ecopack3 | - | - | |
| TS272BIDT | Active 产品已量产 | SO-8 | Industrial | Ecopack3 | - | - | |
| TS272CDT | Active 产品已量产 | SO-8 | Industrial | Ecopack3 | - | - | |
| TS272CPT | Active 产品已量产 | TSSOP-8L | Industrial | Ecopack3 | - | - | |
| TS272IDT | Active 产品已量产 | SO-8 | Industrial | Ecopack3 | - | - | |
| TS272IPT | Active 产品已量产 | TSSOP-8L | Industrial | Ecopack3 | - | - |
