STuW81300

批量生产
Design Win

宽带微波分数整数N分频集成合成器

下载数据手册 Order Direct

产品概述

描述

The STuW81300 includes a dual architecture frequency synthesizer (Fractional-N and Integer- N), four low phase noise VCOs with a fast automatic center frequency calibration providing a very wide frequency range, from 1.925 GHz to 16 GHz, with a single device.

The STuW81300 optimizes size and cost of the final application by the integration of low noise LDO voltage regulators and internally matched broadband RF outputs.

Additional features include a crystal oscillator core, external VCO mode, output mute function and low power mode to trade current consumption with phase noise performance and/or output level.

  • 所有功能

    • Output frequency range: 1.925 GHz to 16 GHz
      • RF out 1 (VCO, VCO÷2): 1.925-8.0 GHz
      • RF out 2 (VCO x 2): 7.7-16.0 GHz
    • Very low noise
      • Normalized phase noise floor: -227 dBc/Hz
      • VCO phase noise (6.0 GHz): -131 dBc/Hz @ 1 MHz offset
      • Noise floor (6.0 GHz): -158 dBc/Hz
      • Phase noise (12 GHz): -125 dBc/Hz @ 1 MHz offset
      • Noise floor (12 GHz): -154 dBc/Hz
    • Integrated VCOs with fast automatic center frequency calibration
    • External VCO option with 5 V charge pump
    • Fundamental VCO rejection at doubler output higher than 20 dB
    • Internally broadband matched RF outputs delivering +6 dBm @6 GHz and +4 dBm @12 GHz single-ended
    • Integrated low noise LDOs
    • Maximum phase detector frequency: 100 MHz
    • Exact frequency mode
    • Differential reference clock input (LVDS and LVECPL compliant) supporting up to 800 MHz
    • Integrated reference crystal oscillator core
    • R/W SPI interface
    • Logic compatibility/tolerance 1.8 V/3.3 V
    • Supply voltage: 3.0 V to 5.4 V
    • Small size exposed pad VFQFPN36 package 6x6x1.0 mm
    • Process: BICMOS 0.25 µm SiGe

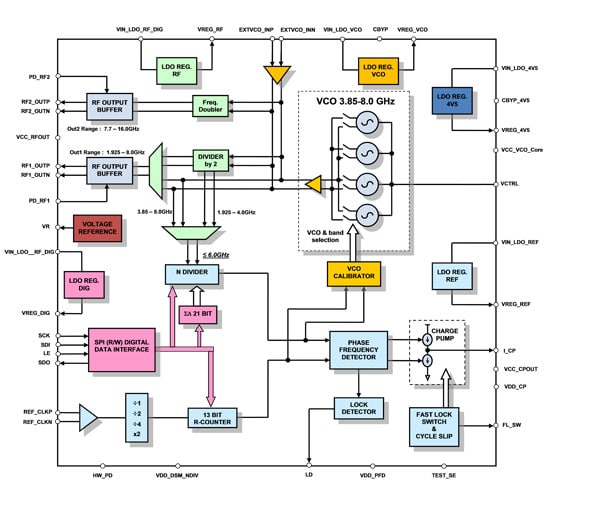

电路原理图

您可能还会喜欢...

EDA符号、封装和3D模型

STMicroelectronics - STuW81300

Speed up your design by downloading all the EDA symbols, footprints and 3D models for your application. You have access to a large number of CAD formats to fit with your design toolchain.

Please select one model supplier :

Symbols

符号

Footprints

封装

3D model

3D模型

质量与可靠性

产品型号 Marketing Status 等级规格 符合RoHS级别 材料声明**
STUW81300T
批量生产
VFQFPN 36 6x6x1.0 mm 工业 Ecopack2
STUW81300TR
批量生产
VFQFPN 36 6x6x1.0 mm 工业 Ecopack2

STUW81300T

Package:

VFQFPN 36 6x6x1.0 mm

Material Declaration**:

PDF XML

Marketing Status

批量生产

Package

VFQFPN 36 6x6x1.0 mm

Grade

Industrial

RoHS Compliance Grade

Ecopack2

STUW81300TR

Package:

VFQFPN 36 6x6x1.0 mm

Material Declaration**:

PDF XML

Marketing Status

批量生产

Package

VFQFPN 36 6x6x1.0 mm

Grade

Industrial

RoHS Compliance Grade

Ecopack2

(**) st.com上提供的材料声明表单可能是基于包装系列中最常用的封装的通用文档。因此,它们可能不是100%适用于特定的设备。有关特定设备的信息,请联系 销售支持
