ST60A3H0

批量生产
Design Win

60 GHz V-band contactless connectivity transceiver with eUSB2, UART, GPIO, or I2C tunneling

下载数据摘要

产品概述

描述

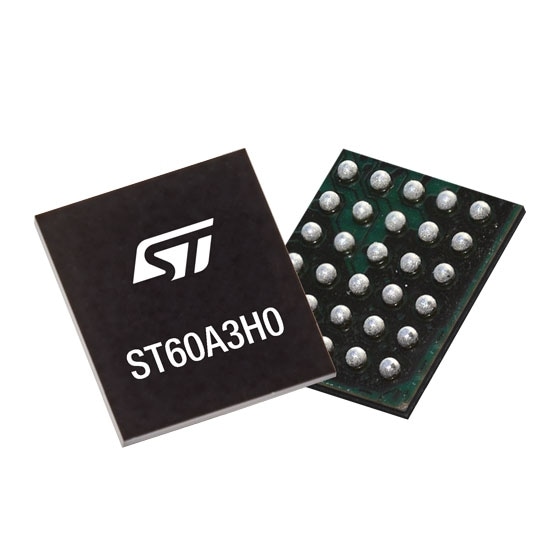

The ST60A3H0 is an RF millimeter-wave transceiver product operating in the 60 GHz V-band. The ST60A3H0 has a miniature form factor, optimized bill of materials, and low-power operation. The ST60A3H0 is a high-speed RF transceiver compliant with eUSB2, UART, and I²C protocols. The transceiver module contains general-purpose input/outputs (GPIOs) that are also available in tunneling mode. The device is compatible with various antenna configurations, either patch antennas designed on-PCB, or highly directive SMT horn antennas allowing both end-fire and broadside radiation patterns. The ST60A3H0 meets the requirements of applications by virtue of its compactness, low-power operation, ease of use, and its innovative architecture design for optimized system bill of materials.

  • 所有功能

    • 60 GHz V-Band transceiver for short range contactless connectivity up to 480 Mbit/s
    • Compact solution integrating full RF transceiver operating in Half-Duplex mode
    • 34 dB typical total link budget
    • eUSB2, UART, GPIO, or I²C RF tunneling
    • Single 1.8 V supply or dual supply 1.8 V (analog/RF) and 1.2 V (digital/GPIO)
    • Low power consumption (typical values with single 1.8 V supply):
      • eUSB2 Rx/Tx - 110/130 mW
      • UART/GPIO/I2C - 90 mW
      • Standby - 23 μW
    • 50 Ω single-ended nominal RF input/output impedance with recommended PCB transition
    • Optimized BOM without external matching network and clock references. A reference clock may be used at one end of the RF link to comply with specific regional regulation
    • Package: VFBGA 2.2 mm x 2.6 mm x 0.8 mm, 30 balls, 5x6 array, 0.4 mm pitch
