ST60A2

批量生产
Design Win

60 GHz V-band contactless connectivity transceiver with SLVS or GPIO tunneling

下载数据摘要

产品概述

描述

The ST60A2 is an RF millimeter-wave transceiver product operating in the 60 GHz V-Band. It provides a very power efficient and high data-rate wireless link enabling freedom from physical cables and connectors for short-range (a few cm) point-to-point communications, using a variety of external antennas (such as patch antennas designed on PCB or highly directive SMT horn antennas allowing both end-fire and broadside radiation patterns).

The ST60A2 offers best-in-class wireless performance with transfer speeds up to 6.25 Gbit/s, along with very low power consumption. Its unmatched efficiency, very small form factor, and innovative architecture designed for optimized system bill of materials, make it ideally suited for a wide range of applications including personal electronics, industrial, computer, and peripherals.

  • 所有功能

    • 60 GHz V-Band transceiver for short range contactless connectivity
    • Up to 6.25 Gbit/s data rate
    • Compact solution integrating full RF transceiver operating in half-duplex mode
    • Low-power ASK modulation scheme supported
    • Differential SLVS input-output port (NRZ), or single-ended CMOS 1.8 V bidirectional data for low data rate. The latter goes from 9.6 Kbit/s to 100 Mbit/s with 15 pF PCB load.
    • 28 dB typical total link budget at 5 Gbit/s
    • 7 ns typical propagation delay
    • Supply voltage: power-optimized dual 1.8 V and 1.45 V supply or single-supply 1.8 V
    • Low power consumption (typical values at 3.125 Gbit/s with dual power supplies)
      • 55 mW in Tx mode
      • 30 mW in Rx mode
      • 7.7 μW in Off mode
    • 8.9 pJ/bit for Tx mode and 6.4 pJ/bit for Rx mode at maximum data rate
    • 50 Ω single-ended nominal RF input/output impedance with recommended PCB transition
    • Operating temperatures:
      • Consumer range: -20 to 85 °C
      • Industrial range: -40 to 105 °C

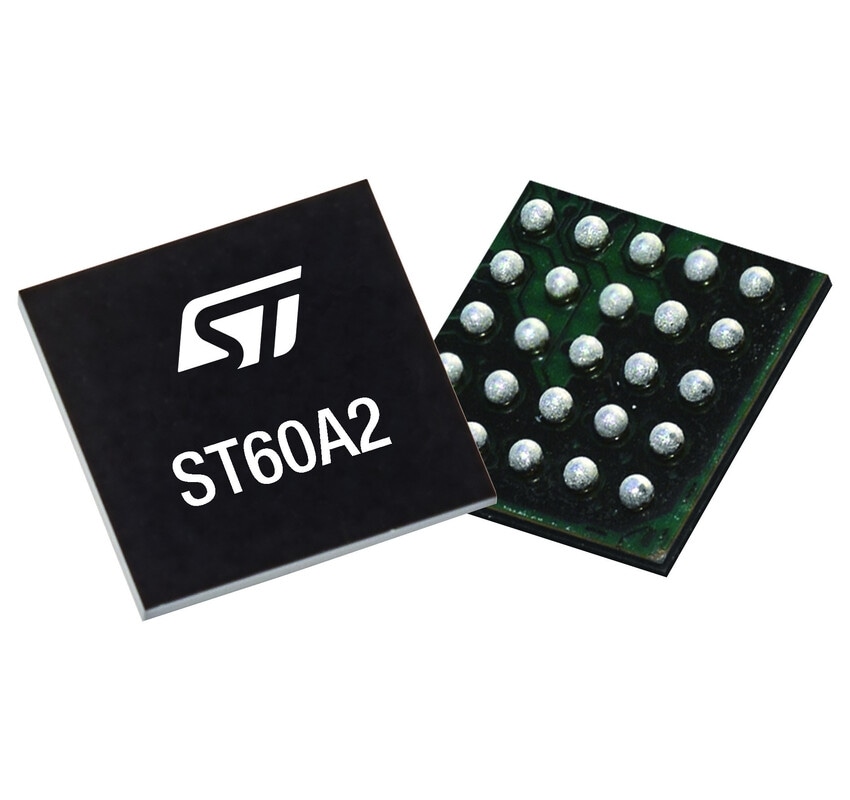

    • Package: VFBGA 2.2 mm x 2.2 mm x 0.8 mm, 25 balls, 5x5 array, 0.4 mm pitch
    • Optimized BOM without external matching network and clock references

您可能还会喜欢...

EDA符号、封装和3D模型

STMicroelectronics - ST60A2

Speed up your design by downloading all the EDA symbols, footprints and 3D models for your application. You have access to a large number of CAD formats to fit with your design toolchain.

Please select one model supplier :

Symbols

符号

Footprints

封装

3D model

3D模型

质量与可靠性

产品型号 Marketing Status 等级规格 符合RoHS级别 材料声明**
ST60A2G0C1D7GTO
批量生产
VFBGA 25 2.2X2.2X0.8 P 0.4 mm 工业 Ecopack2
ST60A2G0C1D7GYO
批量生产
VFBGA 25 2.2X2.2X0.8 P 0.4 mm 工业 Ecopack2
ST60A2G0I1D7GTO
批量生产
VFBGA 25 2.2X2.2X0.8 P 0.4 mm 工业 Ecopack2
ST60A2G0I1D7GYO
批量生产
VFBGA 25 2.2X2.2X0.8 P 0.4 mm 工业 Ecopack2

ST60A2G0C1D7GTO

Package:

VFBGA 25 2.2X2.2X0.8 P 0.4 mm

Material Declaration**:

PDF XML

Marketing Status

批量生产

Package

VFBGA 25 2.2X2.2X0.8 P 0.4 mm

Grade

Industrial

RoHS Compliance Grade

Ecopack2

ST60A2G0C1D7GYO

Package:

VFBGA 25 2.2X2.2X0.8 P 0.4 mm

Material Declaration**:

PDF XML

Marketing Status

批量生产

Package

VFBGA 25 2.2X2.2X0.8 P 0.4 mm

Grade

Industrial

RoHS Compliance Grade

Ecopack2

ST60A2G0I1D7GTO

Package:

VFBGA 25 2.2X2.2X0.8 P 0.4 mm

Material Declaration**:

PDF XML

Marketing Status

批量生产

Package

VFBGA 25 2.2X2.2X0.8 P 0.4 mm

Grade

Industrial

RoHS Compliance Grade

Ecopack2

ST60A2G0I1D7GYO

Package:

VFBGA 25 2.2X2.2X0.8 P 0.4 mm

Material Declaration**:

PDF XML

Marketing Status

批量生产

Package

VFBGA 25 2.2X2.2X0.8 P 0.4 mm

Grade

Industrial

RoHS Compliance Grade

Ecopack2

(**) st.com上提供的材料声明表单可能是基于包装系列中最常用的封装的通用文档。因此,它们可能不是100%适用于特定的设备。有关特定设备的信息,请联系 销售支持
