Product overview
描述
The ACST8 series belongs to the ACS/ACST power switch family built around A.S.D. (application specific discrete) technology. This high performance device is suited to home appliances or industrial systems and drives an induction motor up to 8 A.
This ACST8 switch embeds a Triac structure with a high voltage clamping device to absorb the inductive turn-off energy and withstand line transients such as those described in the IEC 61000-4-5 standards.
ACST8 shows a high noise immunity complying with IEC standards such as IEC 61000-4-4 (fast transient burst test).
-
All features
- Triac with overvoltage protection
- High noise immunity: static dV/dt > 2000 V/μs
- TO-220FPAB insulated package:
- complies with UL standards (File ref : E81734)
- insulation voltage: 2000 VRMS
- Benefits:
- Enables equipment to meet IEC 61000-4-5
- High off-state reliability with planar technology
- Needs no external overvoltage protection
- Reduces the power passive component count
- High immunity against fast transients described in IEC 61000-4-4 standards

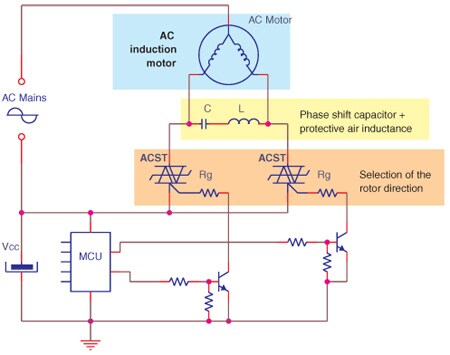

电路原理图
