ACST12
Active
Design Win
过压保护交流开关

储存到myST
Download datasheet
Order Direct

Product overview

描述

The ACST12 series belongs to the ACS™/ACST power switch family built with A.S.D.®(application specific discrete) technology. This high performance device is suited to home appliances or industrial systems and drives loads up to 12 A.

This ACST12 switch embeds a Triac structure and a high voltage clamping device able to absorb the inductive turn-off energy and withstand line transients such as those described in the IEC 61000-4-5 standard. The ACST1210-7 needs a low gate current to be activated (IGT< 10 mA) and still provides a high electrical noise immunity complying with the IEC 61000-4-4 standard. The ACST1235-7 offers an extremely high static dV/dt immunity of 2 kV/μs minimum.

  • All features

    • Triac with overvoltage crowbar technology
    • Low IGT(<10 mA) or high immunity(IGT<35 mA) version
    • High noise immunity: static dV/dt > 2000 V/μs
    • Benefits
      • Enables equipment to meet IEC 61000-4-5
      • High off-state reliability with planar technology
      • Need no external over voltage protection
      • Reduces the power passive component count
      • High immunity against fast transients described in IEC 61000-4-4 standards
    阅读更多信息 阅读较少信息

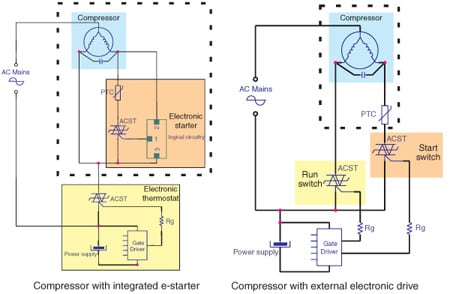

电路原理图

下載

eDesignSuite

eDesignSuite 是一套全面且易于使用的设计辅助工具，旨在帮助您简化系统开发过程，并支持广泛的ST产品。

电源管理设计中心

Thermal-electrical Simulators for Components Test

信号调节设计工具

NFC/RFID计算器

选择设计工具：

电源管理设计中心

Power Supply Design Tool Test

• 支持按拓扑、类型和产品进行SMPS设计
• PFC design with analog and digitial control
• 支持各种PCB配置
选择类型：
DC/DC
AC/DC
Solar Battery Charger

电源管理设计中心

LED照明设计工具

• 处理常见拓扑中的AC-DC和DC-DC设计
• 显示带注释的交互式原理图
• 提供电流/电压曲线图、波特图、效率曲线和功率损耗数据
选择类型：
DC/DC
AC/DC

电源管理设计中心

数字电源工作台

• 提供电源部分和控制回路的逐步优化设计。
• 为定制应用生成 STM32Cube 嵌入式软件包，并允许生成与多个 STM32 IDE 兼容的固件项目。

电源管理设计中心

电源树设计器

• 为树中的每个节点指定输入/输出功率
• 检查一致性
• 设计每个单独的节点
选择设计工具：

Thermal-electrical Simulators for Components Test

STPOWER Studio

• 支持长期任务剖面
• 提供功率损耗与温度曲线图
• 帮助确定散热器热性能

Thermal-electrical Simulators for Components Test

PCB Thermal Simulator

• Thermal analysis of a PCB from Gerber files.
• Possibility to add heat sources, heat sinks, copper areas and thermal paths.
• Powerful server-side engine for rendering and simulation.
• Thermal results shown graphically via 2D table.

Thermal-electrical Simulators for Components Test

AC Switches Simulator test

• 选择额定值与应用波形
• 获取结温与阻断电压曲线图
• 搜索合适的器件并进行排序
• test

Thermal-electrical Simulators for Components Test

Rectifier Diodes Simulator test

• 选择额定值与应用波形
• 预测功率损耗
• 搜索合适的器件并进行排序
• test

Thermal-electrical Simulators for Components Test

Twister Sim

• 为ViPOWER汽车电源器件选型提供帮助
• 支持负载兼容性、线束优化、故障工况影响和诊断分析
• 支持各种PCB配置

Thermal-electrical Simulators for Components Test

TVS模拟器

• 指定系统额定值和浪涌波形
• 搜索合适的器件并进行排序

Thermal-electrical Simulators for Components Test

Estimate

• 数分钟即可完成简单原理图构建及固件输入
• 快速生成电池寿命、系统功耗和BOM成本的可靠估算结果
选择设计工具：

信号调节设计工具

有源滤波器

• 处理多级设计和常见拓扑结构
• 返回电路元件值
• 提供增益、相位和群延迟图
• 低通、高通和带通

信号调节设计工具

比较器

• 处理最常见的配置
• 返回电路元件值
• 提供I/O信号波形
• 反相、非反相、窗口

信号调节设计工具

低侧电流检测

• 返回电路元件值
• 提供电流误差图

信号调节设计工具

高侧电流检测

• 提供电流误差图。
• 帮助选择正确的高侧电流检测和分流器件。
选择设计工具：

NFC/RFID计算器

NFC电感

• 输入电路图和基板性能
• 获取天线阻抗

NFC/RFID计算器

UHF链路预算

• 输入正向和反向链接特性
• 该工具将返回链接预算估算

NFC/RFID计算器

NFC调谐电路

• 输入天线参数和匹配目标
• 选择匹配网络的拓扑结构
• 该工具将返回所需设计目标的元件值

特别推荐

EDA Symbols, Footprints and 3D Models

STMicroelectronics - ACST12

Speed up your design by downloading all the EDA symbols, footprints and 3D models for your application. You have access to a large number of CAD formats to fit with your design toolchain.

Please select one model supplier :

Start your design with UltraLibrarian
Start your design with SamacSys
Symbols

Symbols

Footprints

Footprints

3D model

3D models

所有资源

展开所有类别
Available documentation resources
Resource title
版本
Latest update
Actions Details 下載

SPICE models (1)

Resource title
版本
Latest update
Actions Options
ACST series overvoltage protected AC switches PSpice model (.lib) and symbols (.olb)
7.0 06 Jun 2023
ZIP
06 Jun 2023
ACST series overvoltage protected AC switches PSpice model (.lib) and symbols (.olb) 7.0

Quality and Reliability

Part Number Marketing Status Package Grade 符合RoHS级别 Longevity Commitment Longevity Starting Date Material Declaration**
ACST1235-7G
Active
D2PAK Industrial Ecopack1 (*) - -
ACST1235-7GTR
Active
D2PAK Industrial Ecopack1 (*) - -

ACST1235-7G

Package:

D2PAK

Material Declaration**:

PDF XML
More Info

Marketing Status

Active

Package

D2PAK

Grade

Industrial

RoHS Compliance Grade

Ecopack1 (*)

ACST1235-7GTR

Package:

D2PAK

Material Declaration**:

PDF XML
More Info

Marketing Status

Active

Package

D2PAK

Grade

Industrial

RoHS Compliance Grade

Ecopack1 (*)

(**) st.com上提供的材料声明表单可能是基于包装系列中最常用的封装的通用文档。因此，它们可能不是100%适用于特定的设备。有关特定设备的信息，请联系 销售支持。
