产品概述
描述
The STMUX1800E is a 16 to 8-bit multiplexer/demultiplexer low RONbidirectional LAN switch designed for various standards, such as 10/100/1000 Ethernet. It is designed for very low crosstalk, low bit-to-bit skew and low I/O capacitance.
The differential signal from the Gigabit Ethernet transceiver is multiplexed into one of two selected outputs while the unselected switch goes to Hi-Z status.
The device integrates three SPDT (single pole dual throw) switches, for LED support.
The device can be put into low power mode consuming minimum power.
-
所有功能
- Low RON: 4.0 Ω typical
- VCCoperating range: 3.0 to 3.6 V
- Enhanced ESD protection: > 8 kV (contact) and 15 kV (HBM)
- Low power mode for minimum power consumption
- Channel on capacitance: 9.5 pF typical
- Switching time speed: 9 ns
- Near to zero propagation delay: 250 ps
- Very low crosstalk: -45 dB at 250 MHz
- Bit-to-bit skew: 200 ps
- > 600 MHz -3 dB typical bandwidth (or data frequency)
- Three SPDT switches for LED support
- Rail-to-rail switching on data I/O ports (0 V to 5 V)
- Package: QFN42
- Lead-free

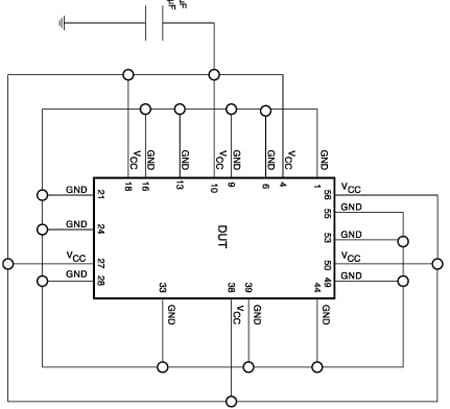

电路原理图
