产品概述
描述
The device is a highly integrated common mode filter designed to suppress EMI/RFI common mode noise on high speed differential serial buses like MIPI D-PHY, MDDI or USB 2.0.
Also it can protect and filter one differential lane.
-
所有功能
- High common mode attenuation:
- -34 dB at 900 MHz
- -20 dB between 800 MHz and 2.2 GHz
- Large bandwidth: 1.7 GHz
- Very low PCB space consumption
- Thin package: 0.55 mm max.
- RoHS package
- High reduction of parasitic elements through integration
- High common mode attenuation:

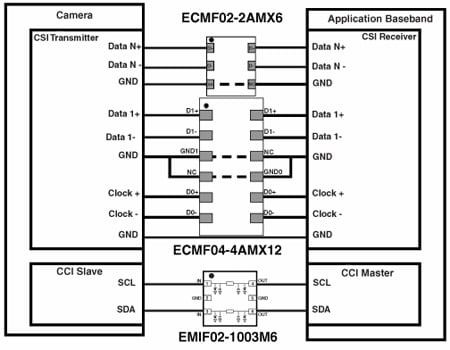

电路原理图
