DVIULC6-4SC6
已停产
Design Win
超低电容ESD保护

储存到myST
下载数据手册

本产品状态为

已停产
.

我们推荐您使用以下产品作为替代:

HSP053-4M5

产品概述

描述

The DVIULC6-4SC6 is a monolithic, application specific discrete device dedicated to ESD protection of high speed interfaces, such as DVI, HDMI, IEEE 1394a, and b, USB 2.0, Ethernet links and video lines.

Its ultralow line capacitance secures a high level of signal integrity without compromise in protecting sensitive chips against the most stringently characterized ESD strikes.

  • 所有功能

    • 4-line ESD protection (IEC 61000-4-2)
    • Protects VBUSwhen applicable
    • Ultralow capacitance: 0.6 pF at 825 MHz
    • Fast response time compared with varistors
    • SOT23-6L package
    • RoHS compliant
    • Benefits
      • ESD standards compliance guaranteed at device level, hence greater immunity at system level
      • ESD protection of VBUS, when applicable, allows ESD current flowing to ground when ESD event occurs on data line
      • Optimized rise and fall times for maximum data integrity
      • Consistent D+ / D- signal balance:
        • Optimum capacitance matching tolerance for ultralow intra-pair skew: I/O to ground = 0.015 pF, I/O to I/O = 0.007 pF
        • Matching high bit rate DVI, HDMI, and IEEE 1394 requirements
      • Low PCB space occupation: 9 mm2
      • Low leakage current for longer operation of battery powered devices
      • Higher reliability offered by monolithic integration
    • Complies with these standards
      • IEC 61000-4-2 level 4:
        • ±15 kV (air discharge)
        • ±8 kV (contact discharge)
      • MIL STD883G-Method 3015-7
    阅读更多信息 阅读较少信息

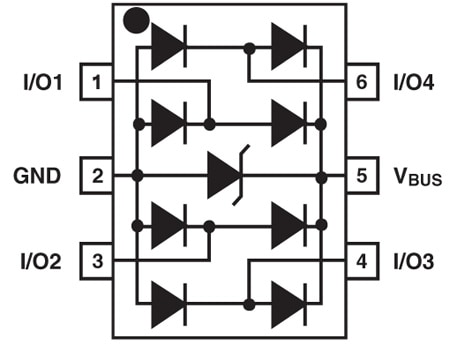

电路原理图

下載

EDA符号、封装和3D模型

意法半导体 - DVIULC6-4SC6

Speed up your design by downloading all the EDA symbols, footprints and 3D models for your application. You have access to a large number of CAD formats to fit with your design toolchain.

Please select one model supplier :

Start your design with UltraLibrarian
Start your design with SamacSys
Symbols

符号

Footprints

封装

3D model

3D模型

所有资源

展开所有类别
Available documentation resources
资源标题
版本
更新时间
Actions 細節 下載

SPICE models (1)

资源标题
版本
更新时间
Actions Options
DVIULC6-4SC6 PSpice model
1.0 01 Aug 2015
ZIP
01 Aug 2015
DVIULC6-4SC6 PSpice model 1.0

CAD Symbol & Footprint models (2)

资源标题
版本
更新时间
Actions Options
dviulc6-4sc6 Altium Symbol and Footprint files
1.0 28 May 2020
ZIP
28 May 2020
dviulc6-4sc6 Altium Symbol and Footprint files 1.0
dviulc6-4sc6 Orcad Symbol and Footprint files
1.0 17 Mar 2020
ZIP
17 Mar 2020
dviulc6-4sc6 Orcad Symbol and Footprint files 1.0
