产品概述
描述
The DVIULC6-2M6 is a monolithic, application specific discrete device dedicated to ESD protection of high speed interfaces, such as DVI, IEEE 1394a, b and c, USB2.0, Ethernet links and video lines.
Its ultra low line capacitance secures a high level of signal integrity without compromising in protecting sensitive chips against the most stringently characterized ESD strikes.
-
所有功能
- 2-line ESD protection (at 15 kV air and contact discharge, exceeds IEC 61000-4-2)
- Protects VBUSwhen applicable
- Ultra low capacitance: 0.6 pF at F = 825 MHz
- Fast response time compared with varistors
- Low leakage current: 0.5 μA max
- RoHS compliant

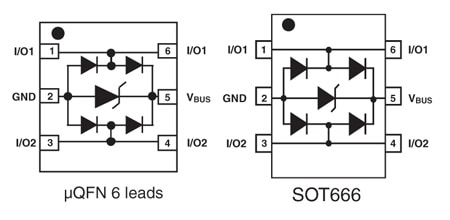

电路原理图
EDA符号、封装和3D模型
意法半导体 - DVIULC6-2x6
Speed up your design by downloading all the EDA symbols, footprints and 3D models for your application. You have access to a large number of CAD formats to fit with your design toolchain.
Please select one model supplier :
符号
封装
3D模型
样片和购买
Don't show this again
| 产品型号 | 供货状态 | Budgetary Price (US$)*/Qty | 从ST订购 | Order from distributors | 包 | 包装类型 | RoHS | Country of Origin | ECCN (US) | ECCN (EU) | Operating Temperature (°C) (min) | Operating Temperature (°C) (max) | Breakdown Voltage (V) (min) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DVIULC6-2M6 | | | distributors 无法联系到经销商，请联系我们的销售办事处 |
|
DVIULC6-2M6 NRND
Budgetary Price (US$)*/Qty:
-
distributors
无法联系到经销商，请联系我们的销售办事处
包:
包装类型:
RoHS:
Country of Origin:
ECCN (US):
ECCN (EU):
