产品概要
描述
The DSILC6-4xx is a monolithic application specific discrete dedicated to ESD protection of high speed interfaces, such as USB 2.0, Ethernet, display and camera serial interfaces (LVDS).
The device is ideal for applications where both reduced printed circuit board space and power absorption capability are required.
-
性能一览
- Diode array topology
4 line protection 5 V VCCprotection Very low capacitance: 1 pF typ. Lead-free pacakge RoHS compliant
- Diode array topology

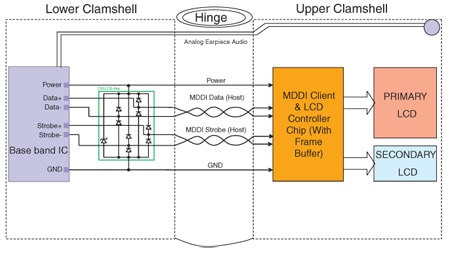

电路原理图
EDA Symbols, Footprints and 3D Models
STMicroelectronics - DSILC6-4xx
Speed up your design by downloading all the EDA symbols, footprints and 3D models for your application. You have access to a large number of CAD formats to fit with your design toolchain.
Please select one model supplier :
Symbols
Footprints
3D models
所有资源
| Resource title | 版本 | Latest update | Actions | Details | 下載 |
|---|
CAD Symbol & Footprint models (4)
| Resource title | 版本 | Latest update | Actions | Options | ||
|---|---|---|---|---|---|---|
| ZIP | 1.0 | 17 Jun 2021 | 17 Jun 2021 | |||
| ZIP | 1.0 | 17 Mar 2020 | 17 Mar 2020 | |||
| ZIP | 1.0 | 02 Apr 2021 | 02 Apr 2021 | |||
| ZIP | 1.0 | 17 Mar 2020 | 17 Mar 2020 |
Quality and Reliability
| Part Number | Marketing Status | Package | Grade | 符合RoHS级别 | Longevity Commitment | Longevity Starting Date | Material Declaration** |
|---|---|---|---|---|---|---|---|
| DSILC6-4F2 | Active 产品已量产 | CSP P 0.5 mm | Industrial | Ecopack2 | 10 | 2026-01-29T00:00:00.000+01:00 | |
| DSILC6-4P6 | Active 产品已量产 | SOT666 | Industrial | Ecopack2 | 10 | 2026-01-29T00:00:00.000+01:00 |
(**) st.com上提供的材料声明表单可能是基于包装系列中最常用的封装的通用文档。因此，它们可能不是100%适用于特定的设备。有关特定设备的信息，请联系 销售支持。
