SLLIMM(小型低损耗智能成型模块)大功率 (HP) 系列紧凑型双列直插式智能电源模块 (IPM) 属于STPOWER系列,在击穿电压、电流能力、功率范围以及封装选项等方面对现有SLLIMM系列进行了扩展,可进一步提高设计灵活性。

“SLLIMM HP智能电源模块”相关视频

新设计机遇与更低的物料成本

全新系列IPM在单个封装中集成了一个完整的逆变器级,包括6个与高侧和低侧栅极驱动器相关联的短路保护IGBT(带续流二极管),用于优化散热和效率

该模块还内置保护和控制功能:自举二极管、欠压锁定、关断输入/故障输出,用于温度监测的NTC热敏电阻,以及用于故障保护的比较器。

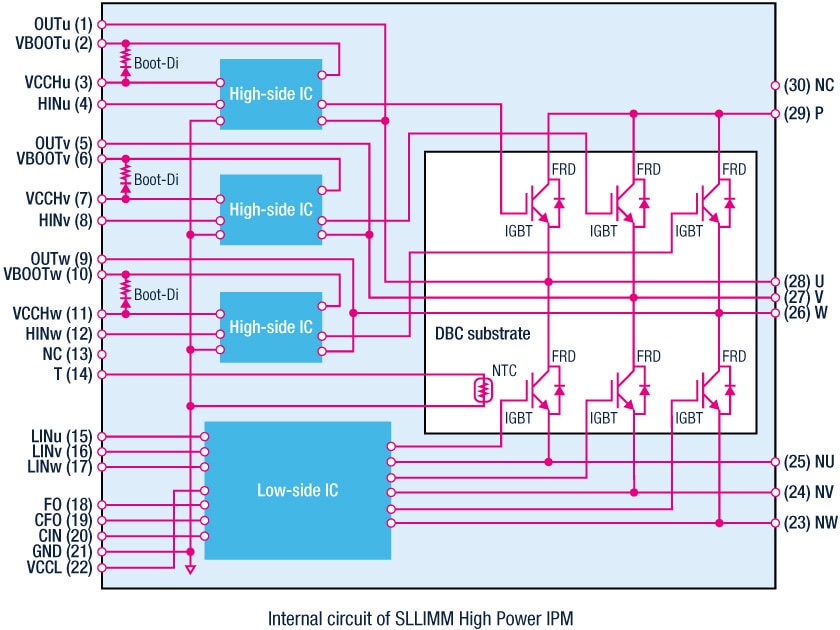

SLLIMM HP智能电源模块内部电路图

SLLIMM HP IPM便于设计人员用紧凑的一体化集成式器件取代基于各种分立式元器件或模块的传统电源电路,简化电路布局降低物料成本。这有助于提高最终应用的安全性、可靠性和成本效益。

应用

SLLIMM HP系列专为大功率工业应用而设计,比如功率最高7 kW且频率可达20 kHz的电机驱动器和逆变器。

  • 暖通空调 (HVAC) 系统
  • 伺服电机
  • 通用逆变器
  • 重型洗衣机
该图标代表电机驱动器相关应用
  • AC电机驱动器
  • 伺服电机驱动器
该图标代表住宅、楼宇和城市自动化相关应用
  • 商用HVAC
  • 住宅HVAC
该图标代表工业设备相关应用
  • 风扇
  • 泵和压缩机
  • 纺织
该图标代表工厂自动化相关应用
  • 工业机器人
该图标代表汽车电机控制相关应用
  • 汽车用无刷直流 (BLDC) 电机
该图标代表车身和便利设备相关应用
  • 暖通空调与气候控制

650V/50A器件可用于汽车应用,如高压辅助电机(即风气压缩机、石油、燃料和水泵)和冷却风扇。

产品类型

该创新型双列直插式封装采用裸露焊盘,基于直接敷铜 (DBC) 基板,确保SLLIMM HP IPM系列具有非常低的热阻和功率损耗,可在功率不超过7kW的工业三相逆变器中实现理想性能。

了解我们的产品组合

集成3相逆变器并具有短路保护IGBT的SLLIMM HP IPM系列包括以下器件:


SLLIMM HP STGIK50CH65T智能电源模块封装 STGIK50CH65T 650V/50A

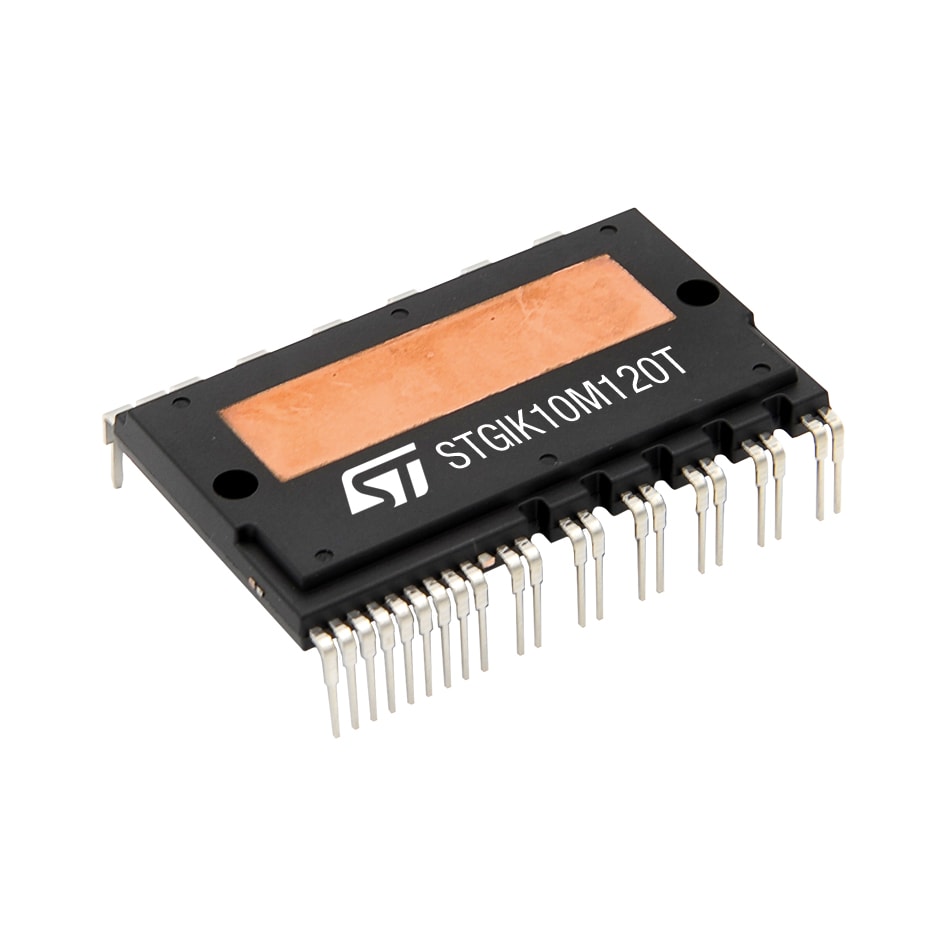

SLLIMM HP STGIK10M120T智能电源模块封装 STGIK10M120T 1200V/10A


SLLIMM大功率产品系列命名原则

优势

  • 采用DBC HPS(Al2O3,9%ZrO2)基板,提高了散热能力
  • 扩展了功率范围,最高可达7kW
  • 提高系统集成度和紧凑性
  • 降低物料成本
  • 效率高,功率损耗低
  • 稳健可靠
  • 与主要的工业级IPM竞品引脚兼容

特性

  • 沟槽式场截止 (TGFS) 型IGBT
  • 软恢复二极管和优化的栅极驱动器配置确保低EMI
  • 集成比较器实现过流和短路故障保护
  • 关断输入/故障输出
  • 欠压锁定 (UVLO)
  • 内置自举二极管
  • 内置NTC热敏电阻,确保精确的温度监测
  • 紧凑型完全隔离式封装,基于DBC基板
  • 隔离额定电压值2500 VRMS/min
