VIPER28

批量生产
Design Win
储存到myST

VIPerPlus系列：峰值功率固定频率离线高压转换器

下载数据手册
Order Direct

产品概述

描述

The device is a high-voltage converter that smartly integrates an 800 V rugged power MOSFET with PWM current-mode control.This IC is capable of meeting more stringent energy-saving standards as it has very low consumption and operates in burst mode under light load. The device features an adjustable extra power timer (EPT) that enables the IC to sustain overload conditions for a few seconds. The integrated HV startup, sense FET and oscillator with jitter allow the advantage of using minimal components in the application. The device features high-level protections like dual-level OCP, output overvoltage, short-circuit, and thermal shutdown with hysteresis. After the removal of a fault condition, the IC is automatically restarted.

  • 所有功能

    • 800 V avalanche-rugged power MOSFET allowing achieving ultra wide-range input Vac
    • Embedded HV startup and sense FET
    • PWM current-mode controller
    • OCP with selectable threshold (IDlim) and 2ndOCP with higher value (IDMAX) to protect the IC from transformer saturation or short-circuit of the secondary diode
    • 30 mW no-load consumption at 230 Vac
    • Two operating frequencies:
      • 60 kHz (L type) or 115 kHz (H type)
    • Jittered frequency reduces the EMI
    • Extra power timer (EPT) blanks the overload current for few seconds
    • Output overvoltage protection with tight tolerance and digital noise filter
    • Soft-start reduces the stress during startup and increases IC lifetime
    • Automatic restart after a fault condition
    • Thermal shutdown increases system reliability and IC lifetime
    阅读更多 阅读较少信息

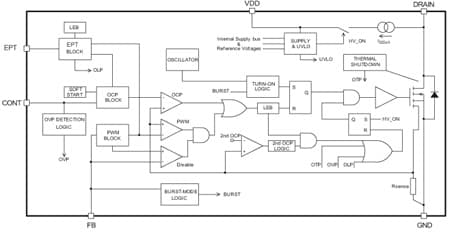

电路原理图

下載

eDesignSuite

eDesignSuite is a comprehensive set of easy-to-use design-aid utilities ready to help you streamline the system development process with a wide range of ST products.

Power Management Design Center

Thermal-electrical Simulators for Components

Signal Conditioning Design Tool

NFC/RFID Calculators

Choose design tool:
Power Management Design Center

Power Supply Design Tool

• SMPS design, by topology, by type and by product
• PFC design with analog and digitial control
• Supports various PCB configurations
Choose type:
DC/DC
AC/DC
太阳能电池充电器
Power Management Design Center

LED Lighting Design Tool

• Handles AC-DC and DC-DC design in common topologies
• Displays interactive and annotated schematic
• Provides current/voltage graphs, Bode plots, efficiency curves and power-loss data
Choose type:
DC/DC
AC/DC
Power Management Design Center

Digital Power Workbench

• Provides a step-by-step optimized design of power section and control loop
• Generates the STM32Cube embedded software package for custom applications and allows firmware project generation, compatible with multiple STM32 IDEs
Power Management Design Center

Power Tree Designer

• Specify input/output power for each node in the tree
• Check for consistency
• Design each individual node
Choose design tool:
Thermal-electrical Simulators for Components

AC Switches Simulator

• Select ratings and application waveforms
• Get junction temperature and blocking voltage graphs
• Search and sort suitable devices
Thermal-electrical Simulators for Components

Rectifier Diodes Simulator

• Select ratings and application waveforms
• Estimate power losses
• Search and sort suitable devices
Thermal-electrical Simulators for Components

STPOWER Studio

• Supports long mission profiles
• Provides power loss and temperature graphs
• Helps define heatsink thermal properties
Thermal-electrical Simulators for Components

Twister Sim

• Help select the right ViPOWER Automotive power device
• Supports load-compatibility, wiring harness optimization, fault condition impact and diagnostic analysis
• Supports various PCB configurations
Thermal-electrical Simulators for Components

TVS Simulator

• Specify system ratings and surge waveform
• Search and sort suitable devices
Thermal-electrical Simulators for Components

Estimate

• Build simple schematics and firmware inputs in minutes
• Quickly generate reliable estimates of battery life, system power consumption and bill of materials costs
Choose design tool:
Signal Conditioning Design Tool

Active Filters

• Handles multi-stage-designs and common topologies
• Returns circuit component values
• Provides gain, phase and group delay graphs
• Low Pass, High Pass and Band Pass
Signal Conditioning Design Tool

Comparators

• Handles most common configurations
• Returns circuit components values
• Provides I/O signal waveforms
• Inverting, Non Inverting, Window
Signal Conditioning Design Tool

Low side Current Sensing

• Returns circuit component values
• Provides current error graphs
Signal Conditioning Design Tool

High side Current Sensing

• Provides current error graphs.
• Help to select the right High side current sensing and shunt devices.
Choose design tool:
NFC/RFID Calculators

NFC Inductance

• Input geometry and substrate properties
• Get antenna impedance
NFC/RFID Calculators

UHF Link Budget

• Enter forward and reverse link characteristics
• The tool returns link budget estimate
NFC/RFID Calculators

NFC Tuning Circuit

• Enter antenna parameter and matching target
• Select the topology of the matching network
• The tool returns component values for the desired design targets

您可能还会喜欢...

STEVAL-ISA125V1

基于VIPer28L的5 V/10 W、60 kHz隔离反激式转换器，具有额外电源管理

STEVAL-ISA126V1

基于VIPER28HN的5 V-2 A - 115 kHz反激式转换器，具有临时的额外电源管理

特别推荐

EDA符号、封装和3D模型

意法半导体 - VIPER28

Speed up your design by downloading all the EDA symbols, footprints and 3D models for your application. You have access to a large number of CAD formats to fit with your design toolchain.

Please select one model supplier :

Start your design with UltraLibrarian
Start your design with SamacSys
Symbols

符号

Footprints

封装

3D model

3D模型

质量与可靠性

产品型号 Marketing Status 包 等级规格 符合RoHS级别 材料声明**
VIPER28HD
批量生产
SO-16 工业 Ecopack2
VIPER28HDTR
批量生产
SO-16 工业 Ecopack2
VIPER28HN
批量生产
PDIP 7 工业 Ecopack2
VIPER28LD
批量生产
SO-16 工业 Ecopack2
VIPER28LDTR
批量生产
SO-16 工业 Ecopack2
VIPER28LN
批量生产
PDIP 7 工业 Ecopack2

VIPER28HD

Package:

SO-16

Material Declaration**:

PDF XML
More Info

Marketing Status

批量生产

Package

SO-16

Grade

Industrial

RoHS Compliance Grade

Ecopack2

VIPER28HDTR

Package:

SO-16

Material Declaration**:

PDF XML
More Info

Marketing Status

批量生产

Package

SO-16

Grade

Industrial

RoHS Compliance Grade

Ecopack2

VIPER28HN

Package:

PDIP 7

Material Declaration**:

More Info

Marketing Status

批量生产

Package

PDIP 7

Grade

Industrial

RoHS Compliance Grade

Ecopack2

VIPER28LD

Package:

SO-16

Material Declaration**:

PDF XML
More Info

Marketing Status

批量生产

Package

SO-16

Grade

Industrial

RoHS Compliance Grade

Ecopack2

VIPER28LDTR

Package:

SO-16

Material Declaration**:

PDF XML
More Info

Marketing Status

批量生产

Package

SO-16

Grade

Industrial

RoHS Compliance Grade

Ecopack2

VIPER28LN

Package:

PDIP 7

Material Declaration**:

More Info

Marketing Status

批量生产

Package

PDIP 7

Grade

Industrial

RoHS Compliance Grade

Ecopack2
