VIPER26
Active
Education Design Win
VIPerPlus系列：节能的12W高压转换器，提供直接反馈

储存到myST
Download datasheet
Order Direct

产品概述

描述

The VIPER26 device is a smart high voltage converter that integrates an 800 V avalanche-rugged power MOSFET with PWM current mode control. The power MOSFET with 800 V breakdown voltage allows an extended input voltage range to be applied, as well as the size of the DRAIN snubber circuit to be reduced.

This IC meets the most stringent energy-saving standards with very low consumption and burst mode operation under light load.

The design of flyback, buck and buck boost converters is supported. The integrated HV startup, sense-FET, error amplifier and oscillator with jitter allow complete application designs with a minimum number of components.

  • All features

    • 800 V avalanche rugged power MOSFET allowing wide range VAC input range to be covered
    • Embedded HV startup and sense-FET
    • Current mode PWM controller
    • Minimized system input power consumption:
      • Less than 30 mW @ 230 VAC in no-load condition
      • Less than 400 mW @ 230 VAC with 250 mW load
    • Limiting current with adjustable set point
    • Jittered switching frequency to reduce the EMI filter cost:
      • 60 kHz ±4 kHz (L type)
      • 115 kHz ±8 kHz (H type)
    • Embedded error amplifier
    • Hysteretic thermal shutdown
    • Built-in soft-start for improved system reliability
    • Protections with automatic restart: overload/short-circuit (OLP), feedback loop disconnection
    阅读更多信息 阅读较少信息

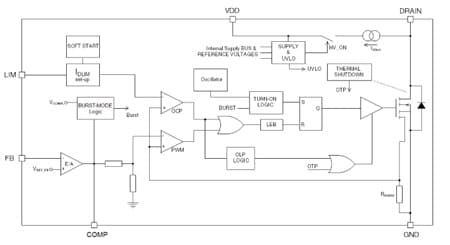

电路原理图

下載

eDesignSuite

eDesignSuite 是一套全面且易于使用的设计辅助工具，旨在帮助您简化系统开发过程，并支持广泛的ST产品。

电源管理设计中心

Thermal-electrical Simulators for Components Test

信号调节设计工具

NFC/RFID计算器

选择设计工具：

电源管理设计中心

Power Supply Design Tool Test

• 支持按拓扑、类型和产品进行SMPS设计
• PFC design with analog and digitial control
• 支持各种PCB配置
选择类型：
DC/DC
AC/DC
Solar Battery Charger

电源管理设计中心

LED照明设计工具

• 处理常见拓扑中的AC-DC和DC-DC设计
• 显示带注释的交互式原理图
• 提供电流/电压曲线图、波特图、效率曲线和功率损耗数据
选择类型：
DC/DC
AC/DC

电源管理设计中心

数字电源工作台

• 提供电源部分和控制回路的逐步优化设计。
• 为定制应用生成 STM32Cube 嵌入式软件包，并允许生成与多个 STM32 IDE 兼容的固件项目。

电源管理设计中心

电源树设计器

• 为树中的每个节点指定输入/输出功率
• 检查一致性
• 设计每个单独的节点
选择设计工具：

Thermal-electrical Simulators for Components Test

STPOWER Studio

• 支持长期任务剖面
• 提供功率损耗与温度曲线图
• 帮助确定散热器热性能

Thermal-electrical Simulators for Components Test

PCB Thermal Simulator

• Thermal analysis of a PCB from Gerber files.
• Possibility to add heat sources, heat sinks, copper areas and thermal paths.
• Powerful server-side engine for rendering and simulation.
• Thermal results shown graphically via 2D table.

Thermal-electrical Simulators for Components Test

AC Switches Simulator test

• 选择额定值与应用波形
• 获取结温与阻断电压曲线图
• 搜索合适的器件并进行排序
• test

Thermal-electrical Simulators for Components Test

Rectifier Diodes Simulator test

• 选择额定值与应用波形
• 预测功率损耗
• 搜索合适的器件并进行排序
• test

Thermal-electrical Simulators for Components Test

Twister Sim

• 为ViPOWER汽车电源器件选型提供帮助
• 支持负载兼容性、线束优化、故障工况影响和诊断分析
• 支持各种PCB配置

Thermal-electrical Simulators for Components Test

TVS模拟器

• 指定系统额定值和浪涌波形
• 搜索合适的器件并进行排序

Thermal-electrical Simulators for Components Test

Estimate

• 数分钟即可完成简单原理图构建及固件输入
• 快速生成电池寿命、系统功耗和BOM成本的可靠估算结果
选择设计工具：

信号调节设计工具

有源滤波器

• 处理多级设计和常见拓扑结构
• 返回电路元件值
• 提供增益、相位和群延迟图
• 低通、高通和带通

信号调节设计工具

比较器

• 处理最常见的配置
• 返回电路元件值
• 提供I/O信号波形
• 反相、非反相、窗口

信号调节设计工具

低侧电流检测

• 返回电路元件值
• 提供电流误差图

信号调节设计工具

高侧电流检测

• 提供电流误差图。
• 帮助选择正确的高侧电流检测和分流器件。
选择设计工具：

NFC/RFID计算器

NFC电感

• 输入电路图和基板性能
• 获取天线阻抗

NFC/RFID计算器

UHF链路预算

• 输入正向和反向链接特性
• 该工具将返回链接预算估算

NFC/RFID计算器

NFC调谐电路

• 输入天线参数和匹配目标
• 选择匹配网络的拓扑结构
• 该工具将返回所需设计目标的元件值

特别推荐

EDA Symbols, Footprints and 3D Models

STMicroelectronics - VIPER26

Speed up your design by downloading all the EDA symbols, footprints and 3D models for your application. You have access to a large number of CAD formats to fit with your design toolchain.

Please select one model supplier :

Start your design with UltraLibrarian
Start your design with SamacSys
Symbols

Symbols

Footprints

Footprints

3D model

3D models

所有资源

展开所有类别
Available documentation resources
Resource title
版本
Latest update
Actions Details 下載

SPICE models (1)

Resource title
版本
Latest update
Actions Options
VIPer26 PSpice models
2.0 10 Jan 2017
ZIP
10 Jan 2017
VIPer26 PSpice models 2.0

Quality and Reliability

Part Number Marketing Status Package Grade 符合RoHS级别 Longevity Commitment Longevity Starting Date Material Declaration**
VIPER26HD
Active
SO-16 Industrial Ecopack2 10 2025-09-19T00:00:00.000+02:00
VIPER26HDTR
Active
SO-16 Industrial Ecopack2 10 2025-09-19T00:00:00.000+02:00
VIPER26HN
Active
PDIP 7 Industrial Ecopack2 10 2025-09-19T00:00:00.000+02:00
VIPER26LD
Active
SO-16 Industrial Ecopack2 10 2025-09-19T00:00:00.000+02:00
VIPER26LDTR
Active
SO-16 Industrial Ecopack2 10 2025-09-19T00:00:00.000+02:00
VIPER26LN
Active
PDIP 7 Industrial Ecopack2 10 2025-09-19T00:00:00.000+02:00

VIPER26HD

Package:

SO-16

Material Declaration**:

PDF XML
More Info

Marketing Status

Active

Package

SO-16

Grade

Industrial

RoHS Compliance Grade

Ecopack2

VIPER26HDTR

Package:

SO-16

Material Declaration**:

PDF XML
More Info

Marketing Status

Active

Package

SO-16

Grade

Industrial

RoHS Compliance Grade

Ecopack2

VIPER26HN

Package:

PDIP 7

Material Declaration**:

PDF XML
More Info

Marketing Status

Active

Package

PDIP 7

Grade

Industrial

RoHS Compliance Grade

Ecopack2

VIPER26LD

Package:

SO-16

Material Declaration**:

PDF XML
More Info

Marketing Status

Active

Package

SO-16

Grade

Industrial

RoHS Compliance Grade

Ecopack2

VIPER26LDTR

Package:

SO-16

Material Declaration**:

PDF XML
More Info

Marketing Status

Active

Package

SO-16

Grade

Industrial

RoHS Compliance Grade

Ecopack2

VIPER26LN

Package:

PDIP 7

Material Declaration**:

PDF XML
More Info

Marketing Status

Active

Package

PDIP 7

Grade

Industrial

RoHS Compliance Grade

Ecopack2

(**) st.com上提供的材料声明表单可能是基于包装系列中最常用的封装的通用文档。因此，它们可能不是100%适用于特定的设备。有关特定设备的信息，请联系 销售支持。
