VIPER25

批量生产
Design Win

VIPerPlus系列:准谐振高性能离线高压转换器

下载数据手册 Order Direct

产品概述

描述

VIPER25 is an off-line converter with an 800 V rugged power section, a PWM control, double levels of overcurrent protection, overvoltage and overload protections, hysteretic thermal protection, soft-start and safe auto-restart after any fault condition removal. Burst mode operation and device very low consumption helps to meet the standby energy saving regulations. The quasiresonant feature reduces EMI filter cost. Brownout and brown-in function protects the switch mode power supply when the rectified input voltage level is below the normal minimum level specified for the system. The high voltage start-up circuit is embedded in the device.

  • 所有功能

    • 800 V avalanche rugged power section
    • Quasi-resonant (QR) control for valley switching operation
    • Standby power < 50 mW at 265 Vac
    • Limiting current with adjustable set point
    • Adjustable and accurate overvoltage protection
    • On-board soft-start
    • Safe auto-restart after a fault condition
    • Hysteretic thermal shutdown

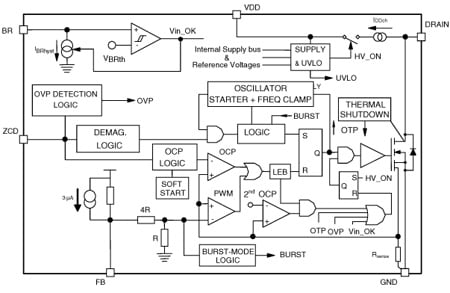

电路原理图

eDesignSuite

eDesignSuite is a comprehensive set of easy-to-use design-aid utilities ready to help you streamline the system development process with a wide range of ST products.

Power Supply Design Tool

SMPS design, by topology, by type and by product
PFC design with analog and digitial control
Supports various PCB configurations
Power Supply
Choose type:
Input Specification
Input Specification
V
This option is required. And must be less than or equal to Volt. Max [V]
V
This option is required. And must be greater than or equal to Volt. Min [V]
Output
V
this option is required
A
this option is required
Output Power: 0

您可能还会喜欢...

EDA符号、封装和3D模型

STMicroelectronics - VIPER25

Speed up your design by downloading all the EDA symbols, footprints and 3D models for your application. You have access to a large number of CAD formats to fit with your design toolchain.

Please select one model supplier :

Symbols

符号

Footprints

封装

3D model

3D模型

质量与可靠性

产品型号 Marketing Status 等级规格 符合RoHS级别 材料声明**
VIPER25HD
批量生产
SO-16 工业 Ecopack2
VIPER25HDTR
批量生产
SO-16 工业 Ecopack2
VIPER25LD
批量生产
SO-16 工业 Ecopack2
VIPER25LDTR
批量生产
SO-16 工业 Ecopack2

VIPER25HD

Package:

SO-16

Material Declaration**:

Marketing Status

批量生产

Package

SO-16

Grade

Industrial

RoHS Compliance Grade

Ecopack2

VIPER25HDTR

Package:

SO-16

Material Declaration**:

Marketing Status

批量生产

Package

SO-16

Grade

Industrial

RoHS Compliance Grade

Ecopack2

VIPER25LD

Package:

SO-16

Material Declaration**:

PDF XML

Marketing Status

批量生产

Package

SO-16

Grade

Industrial

RoHS Compliance Grade

Ecopack2

VIPER25LDTR

Package:

SO-16

Material Declaration**:

PDF XML

Marketing Status

批量生产

Package

SO-16

Grade

Industrial

RoHS Compliance Grade

Ecopack2

(**) st.com上提供的材料声明表单可能是基于包装系列中最常用的封装的通用文档。因此,它们可能不是100%适用于特定的设备。有关特定设备的信息,请联系 销售支持

样片和购买

Swipe or click the button to explore more details Don't show this again
产品型号
供货状态
Budgetary Price (US$)*/Qty
从ST订购
Order from distributors
包装类型
RoHS
Country of Origin
ECCN (US)
ECCN (EU)
Transistor Breakdown Voltage (V) (min)
Drain Current (A) (nom)
RDS(on) (Ω) (max)
VIPER25HD
Available at distributors

经销商的可用性 VIPER25HD

代理商名称
地区 库存 最小订购量 第三方链接

代理商库存报告日期:

无法联系到经销商,请联系我们的销售办事处

VIPER25LD
Available at distributors

经销商的可用性 VIPER25LD

代理商名称
地区 库存 最小订购量 第三方链接

代理商库存报告日期:

无法联系到经销商,请联系我们的销售办事处

VIPER25HDTR
Available at distributors

经销商的可用性 VIPER25HDTR

代理商名称
地区 库存 最小订购量 第三方链接

代理商库存报告日期:

无法联系到经销商,请联系我们的销售办事处

VIPER25LDTR
Available at distributors

经销商的可用性 VIPER25LDTR

代理商名称
地区 库存 最小订购量 第三方链接

代理商库存报告日期:

无法联系到经销商,请联系我们的销售办事处

VIPER25HD 批量生产

Budgetary Price (US$)*/Qty:
-
包:
包装类型:
RoHS:
Country of Origin:
ECCN (US):
ECCN (EU):

产品型号:

VIPER25HD

Transistor Breakdown Voltage (V) (min):

800

Drain Current (A) (nom):

0.7

RDS(on) (Ω) (max):

7

VIPER25LD 批量生产

Budgetary Price (US$)*/Qty:
-
包:
包装类型:
RoHS:
Country of Origin:
ECCN (US):
ECCN (EU):

产品型号:

VIPER25LD

Transistor Breakdown Voltage (V) (min):

800

Drain Current (A) (nom):

0.7

RDS(on) (Ω) (max):

7

代理商名称

代理商库存报告日期:

VIPER25HDTR 批量生产

Budgetary Price (US$)*/Qty:
-
包:
包装类型:
RoHS:
Country of Origin:
ECCN (US):
ECCN (EU):

产品型号:

VIPER25HDTR

Transistor Breakdown Voltage (V) (min):

800

Drain Current (A) (nom):

0.7

RDS(on) (Ω) (max):

7

VIPER25LDTR 批量生产

Budgetary Price (US$)*/Qty:
-
包:
包装类型:
RoHS:
Country of Origin:
ECCN (US):
ECCN (EU):

产品型号:

VIPER25LDTR

Transistor Breakdown Voltage (V) (min):

800

Drain Current (A) (nom):

0.7

RDS(on) (Ω) (max):

7

代理商名称

代理商库存报告日期:
