VIPER17

批量生产
Design Win

VIPerPlus系列:固定频率6W高性能离线高压转换器

下载数据手册 Order Direct

产品概述

描述

The device is an off-line converter with an 800 V rugged power section, a PWM control, two levels of overcurrent protection, overvoltage and overload protections, hysteresis thermal protection, soft-start and safe auto-restart after any fault condition removal. The burst mode operation and the device’s very low consumption meet the standby energy saving regulations.

Advance frequency jittering reduces EMI filter cost. Brown-out function protects the switch mode power supply when the rectified input voltage level is below the normal minimum level specified for the system. The high voltage startup circuit is embedded in the device.

  • 所有功能

    • 800 V avalanche rugged power section
    • PWM operation with frequency jittering for low EMI
    • Operating frequency:
      • 60 kHz for L type
      • 115 kHz for H type
    • Standby power < 30 mW at 265 VAC
    • Limiting current with adjustable set point
    • Adjustable and accurate overvoltage protection
    • On-board soft-start
    • Safe auto-restart after a fault condition
    • Hysteresis thermal shutdown

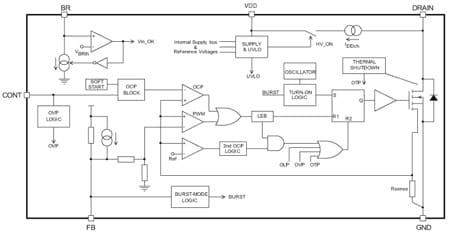

电路原理图

eDesignSuite

eDesignSuite is a comprehensive set of easy-to-use design-aid utilities ready to help you streamline the system development process with a wide range of ST products.

Power Supply Design Tool

SMPS design, by topology, by type and by product
PFC design with analog and digitial control
Supports various PCB configurations
Power Supply
Choose type:
Input Specification
Input Specification
V
This option is required. And must be less than or equal to Volt. Max [V]
V
This option is required. And must be greater than or equal to Volt. Min [V]
Output
V
this option is required
A
this option is required
Output Power: 0

您可能还会喜欢...

EDA符号、封装和3D模型

STMicroelectronics - VIPER17

Speed up your design by downloading all the EDA symbols, footprints and 3D models for your application. You have access to a large number of CAD formats to fit with your design toolchain.

Please select one model supplier :

Symbols

符号

Footprints

封装

3D model

3D模型

质量与可靠性

产品型号 Marketing Status 等级规格 符合RoHS级别 材料声明**
VIPER17HD
批量生产
SO-16 工业 Ecopack2
VIPER17HDTR
批量生产
SO-16 工业 Ecopack2
VIPER17HN
批量生产
PDIP 7 工业 Ecopack2
VIPER17LD
批量生产
SO-16 工业 Ecopack2
VIPER17LDTR
批量生产
SO-16 工业 Ecopack2
VIPER17LN
批量生产
PDIP 7 工业 Ecopack2

VIPER17HD

Package:

SO-16

Material Declaration**:

PDF XML

Marketing Status

批量生产

Package

SO-16

Grade

Industrial

RoHS Compliance Grade

Ecopack2

VIPER17HDTR

Package:

SO-16

Material Declaration**:

PDF XML

Marketing Status

批量生产

Package

SO-16

Grade

Industrial

RoHS Compliance Grade

Ecopack2

VIPER17HN

Package:

PDIP 7

Material Declaration**:

Marketing Status

批量生产

Package

PDIP 7

Grade

Industrial

RoHS Compliance Grade

Ecopack2

VIPER17LD

Package:

SO-16

Material Declaration**:

PDF XML

Marketing Status

批量生产

Package

SO-16

Grade

Industrial

RoHS Compliance Grade

Ecopack2

VIPER17LDTR

Package:

SO-16

Material Declaration**:

PDF XML

Marketing Status

批量生产

Package

SO-16

Grade

Industrial

RoHS Compliance Grade

Ecopack2

VIPER17LN

Package:

PDIP 7

Material Declaration**:

Marketing Status

批量生产

Package

PDIP 7

Grade

Industrial

RoHS Compliance Grade

Ecopack2

(**) st.com上提供的材料声明表单可能是基于包装系列中最常用的封装的通用文档。因此,它们可能不是100%适用于特定的设备。有关特定设备的信息,请联系 销售支持

样片和购买

Swipe or click the button to explore more details Don't show this again
产品型号
供货状态
Budgetary Price (US$)*/Qty
从ST订购
Order from distributors
包装类型
RoHS
Country of Origin
ECCN (US)
ECCN (EU)
Operating Temperature (°C) (max)
Transistor Breakdown Voltage (V) (min)
Drain Current (A) (nom)
RDS(on) (Ω) (max)
VIPER17LDTR
Available at distributors

经销商的可用性 VIPER17LDTR

代理商名称
地区 库存 最小订购量 第三方链接

代理商库存报告日期:

无法联系到经销商,请联系我们的销售办事处

VIPER17HD
Available at distributors

经销商的可用性 VIPER17HD

代理商名称
地区 库存 最小订购量 第三方链接

代理商库存报告日期:

无法联系到经销商,请联系我们的销售办事处

VIPER17HDTR
Available at distributors

经销商的可用性 VIPER17HDTR

代理商名称
地区 库存 最小订购量 第三方链接

代理商库存报告日期:

无法联系到经销商,请联系我们的销售办事处

VIPER17HN
Available at distributors

经销商的可用性 VIPER17HN

代理商名称
地区 库存 最小订购量 第三方链接

代理商库存报告日期:

无法联系到经销商,请联系我们的销售办事处

VIPER17LD
Available at distributors

经销商的可用性 VIPER17LD

代理商名称
地区 库存 最小订购量 第三方链接

代理商库存报告日期:

无法联系到经销商,请联系我们的销售办事处

VIPER17LN
Available at distributors

经销商的可用性 VIPER17LN

代理商名称
地区 库存 最小订购量 第三方链接

代理商库存报告日期:

无法联系到经销商,请联系我们的销售办事处

VIPER17LDTR 批量生产

Budgetary Price (US$)*/Qty:
-
包:
包装类型:
RoHS:
Country of Origin:
ECCN (US):
ECCN (EU):

产品型号:

VIPER17LDTR

Operating Temperature (°C) (max):

-

Transistor Breakdown Voltage (V) (min):

800

Drain Current (A) (nom):

0.4

RDS(on) (Ω) (max):

24

代理商名称

代理商库存报告日期:

VIPER17HD 批量生产

Budgetary Price (US$)*/Qty:
-
包:
包装类型:
RoHS:
Country of Origin:
ECCN (US):
ECCN (EU):

产品型号:

VIPER17HD

Operating Temperature (°C) (max):

150

Transistor Breakdown Voltage (V) (min):

800

Drain Current (A) (nom):

0.4

RDS(on) (Ω) (max):

24

代理商名称

代理商库存报告日期:

VIPER17HDTR 批量生产

Budgetary Price (US$)*/Qty:
-
包:
包装类型:
RoHS:
Country of Origin:
ECCN (US):
ECCN (EU):

产品型号:

VIPER17HDTR

Operating Temperature (°C) (max):

-

Transistor Breakdown Voltage (V) (min):

800

Drain Current (A) (nom):

0.4

RDS(on) (Ω) (max):

24

代理商名称

代理商库存报告日期:

VIPER17HN 批量生产

Budgetary Price (US$)*/Qty:
-
包:
包装类型:
RoHS:
Country of Origin:
ECCN (US):
ECCN (EU):

产品型号:

VIPER17HN

Operating Temperature (°C) (max):

150

Transistor Breakdown Voltage (V) (min):

800

Drain Current (A) (nom):

0.4

RDS(on) (Ω) (max):

24

代理商名称

代理商库存报告日期:

VIPER17LD 批量生产

Budgetary Price (US$)*/Qty:
-
包:
包装类型:
RoHS:
Country of Origin:
ECCN (US):
ECCN (EU):

产品型号:

VIPER17LD

Operating Temperature (°C) (max):

150

Transistor Breakdown Voltage (V) (min):

800

Drain Current (A) (nom):

0.4

RDS(on) (Ω) (max):

24

代理商名称

代理商库存报告日期:

VIPER17LN 批量生产

Budgetary Price (US$)*/Qty:
-
包:
包装类型:
RoHS:
Country of Origin:
ECCN (US):
ECCN (EU):

产品型号:

VIPER17LN

Operating Temperature (°C) (max):

150

Transistor Breakdown Voltage (V) (min):

800

Drain Current (A) (nom):

0.4

RDS(on) (Ω) (max):

24

代理商名称

代理商库存报告日期:

Swipe or click the button to explore more details Don't show this again

(*) 建议转售单价(美元)仅用于预算用途。如需以当地货币计价的报价,请联系您当地的 ST销售办事处 或我们的 经销商
