TDE1707

批量生产
Design Win Education

0.5 A智能电源开关

下载数据手册 Order Direct

产品概述

描述

The TDE1707BFP and TDE1707CFP are 0.5 A integrated power switches with up to 48 V power supply capability. Two output configurations are possible. The former is the load to GND (high-side mode) and the latter is the load to VS (low-side mode). This device is dedicated to proximity detectors; its internal +5 V supply can be used to supply external circuits (please refer to AN495 and AN1213 on www.st.com). A signal is internally generated to block the IN signal, and prevent the output switch, as long as an abnormal condition is detected. The power-on transition, as well as the chip overtemperature and the output overcurrent, generate this signal. A minimum delay of 25 μs (typ. value) is added to the trailing edge of this signal to ensure that a stable normal situation is present when the signal disappears. The delay (the disappearance of block signal) can be further increased by connecting a capacitor between pin 3 and ground. It can drive resistive or inductive loads.

  • 所有功能

    • 0.5 A output current
    • Low-side or high-side switch configuration
    • Supply voltage range from 6 V to 48 V
    • Overload and short-circuit protections
    • Internal voltage clamping
    • Supply and output reversal protection
    • Thermal shutdown
    • GND and VS open wire protection
    • Adjustable delay at switch-on
    • Indicator status LED driver
    • +5 V regulated AUX voltage
    • High burst immunity

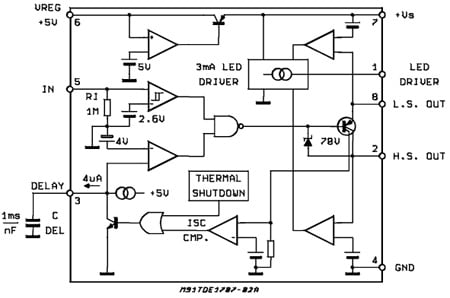

电路原理图

EDA符号、封装和3D模型

STMicroelectronics - TDE1707

Speed up your design by downloading all the EDA symbols, footprints and 3D models for your application. You have access to a large number of CAD formats to fit with your design toolchain.

Please select one model supplier :

Symbols

符号

Footprints

封装

3D model

3D模型

质量与可靠性

产品型号 Marketing Status 等级规格 符合RoHS级别 材料声明**
TDE1707BFP
批量生产
SO-8 工业 Ecopack2
TDE1707BFPT
批量生产
SO-8 工业 Ecopack2
TDE1707CFP
批量生产
SO-8 工业 Ecopack2
TDE1707CFPT
批量生产
SO-8 工业 Ecopack2

TDE1707BFP

Package:

SO-8

Material Declaration**:

Marketing Status

批量生产

Package

SO-8

Grade

Industrial

RoHS Compliance Grade

Ecopack2

TDE1707BFPT

Package:

SO-8

Material Declaration**:

Marketing Status

批量生产

Package

SO-8

Grade

Industrial

RoHS Compliance Grade

Ecopack2

TDE1707CFP

Package:

SO-8

Material Declaration**:

Marketing Status

批量生产

Package

SO-8

Grade

Industrial

RoHS Compliance Grade

Ecopack2

TDE1707CFPT

Package:

SO-8

Material Declaration**:

Marketing Status

批量生产

Package

SO-8

Grade

Industrial

RoHS Compliance Grade

Ecopack2

(**) st.com上提供的材料声明表单可能是基于包装系列中最常用的封装的通用文档。因此,它们可能不是100%适用于特定的设备。有关特定设备的信息,请联系 销售支持
